Trek Checkpoint SL 5 AXS Gen 3 Carbon Gravel Bike
Trek Checkpoint SL 5 AXS Gen 3 Carbon Gravel Bike
Please note that this product is only available to be collected from our Wānaka Store.
Due to manufacturing and warranty requirements, all bike frames must be assembled by an authorised dealer.
Last one in stock!
Ride to work with a Racers Edge bike and offset the cost by 32-63%. Explore Workride.
Why we love it
Trek Checkpoint SL 5 AXS Gen 3 Carbon Gravel Bike
Trek Checkpoint SL 5 AXS Gen 3 Carbon Gravel Bike

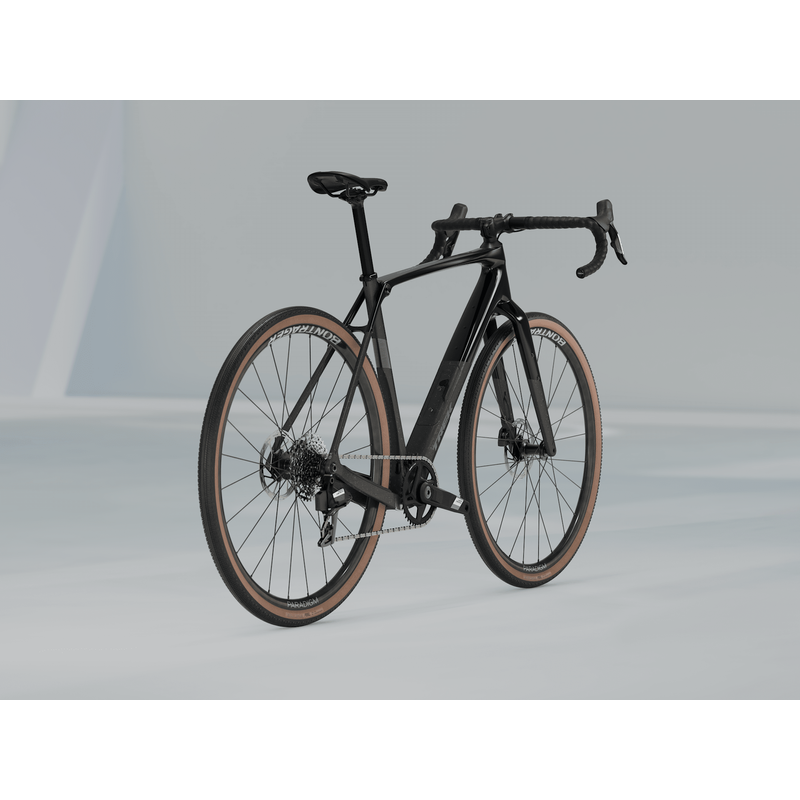

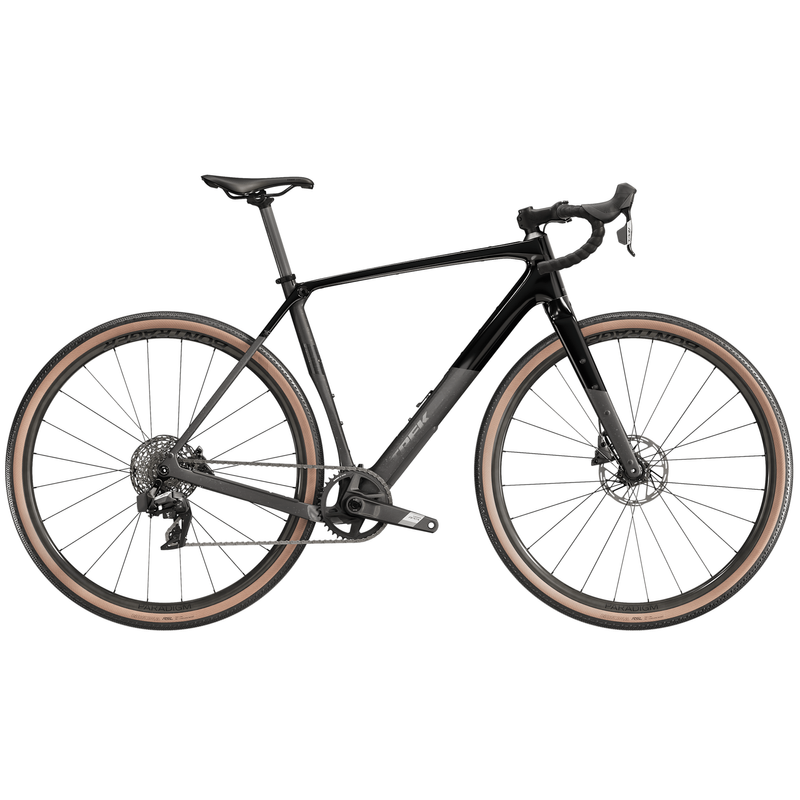

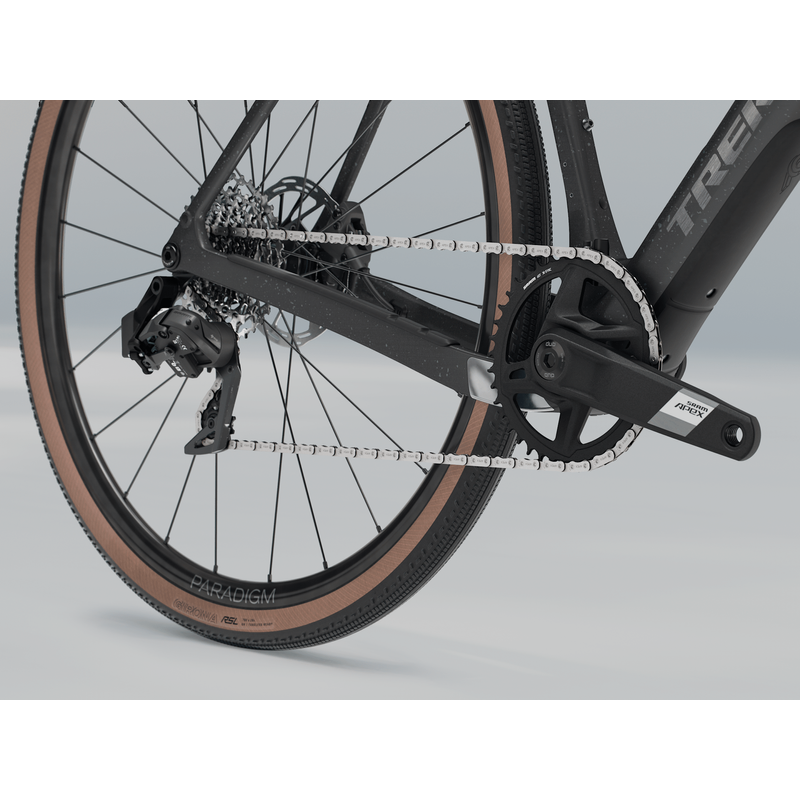

The Checkpoint SL 5 AXS Gen 3 is an adventure-ready carbon gravel bike built to roll into the distant horizon. Its lightweight carbon frame is designed with comfort-focused geometry, room for beefy 50 mm tyres (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed comfort technology helps soak up jarring road vibrations, so you can you float over chatter and potholes. It comes equipped with a wireless SRAM Apex XPLR AXS drivetrain to deliver plenty of gears for exploring the dusty road.
IsoSpeed comfort tech
IsoSpeed comfort tech smooths pot holes and fatiguing bumps in the road so you can ride stronger for longer.
New Gravel Endurance geometry
A new confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position so you can stay comfortable on even your most epic adventures.
Big ’ol tyre clearance
Roll over the rough stuff with room to fit gravel tyres up to 50 mm wide (as measured).
Bigger in-frame storage
More internal frame storage and a bigger storage door lets you fit all your flat tools inside your bike so you're always ready for whatever the gravel road throws at you.
Mounts galore

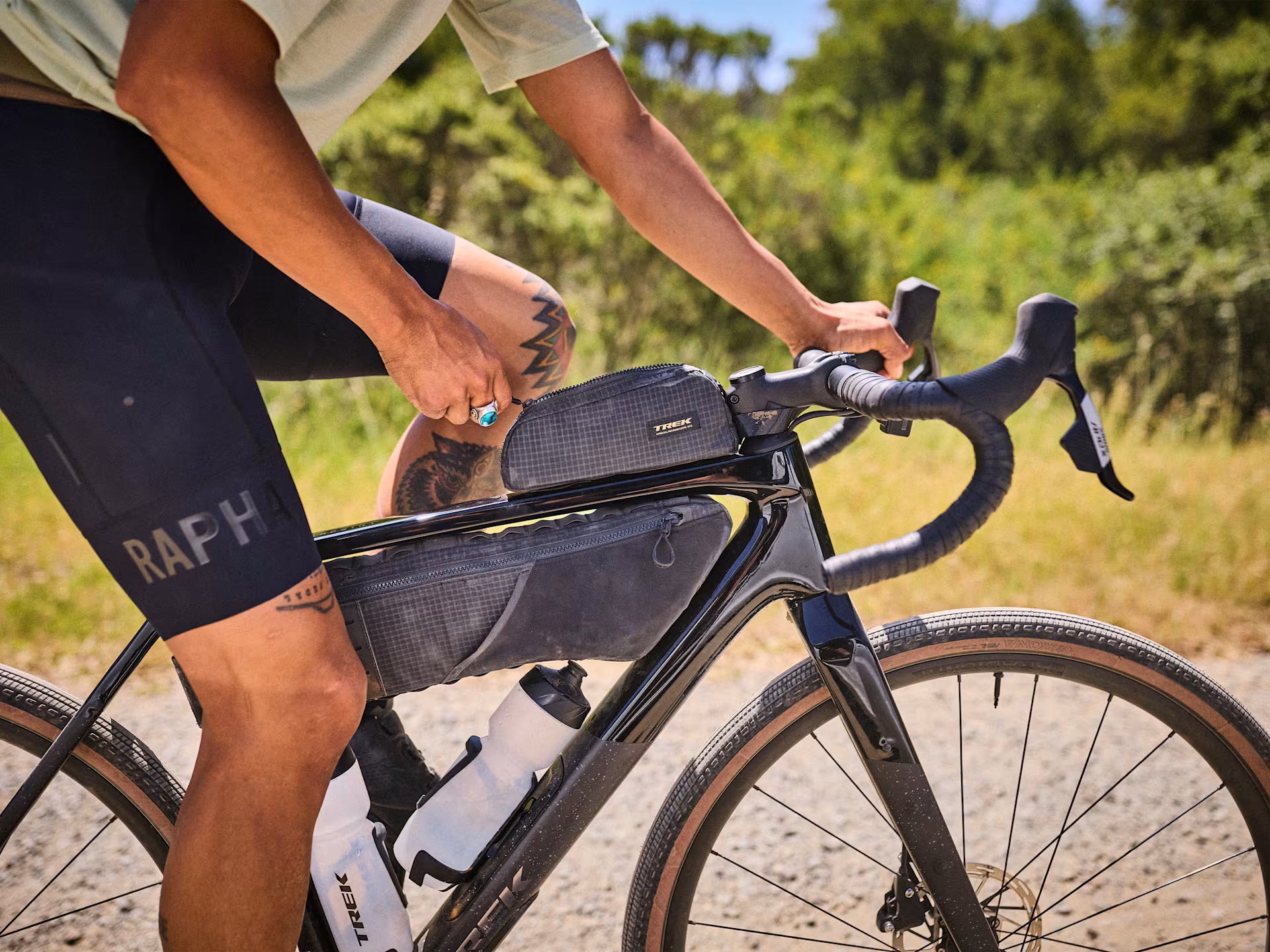

The new Checkpoint SL is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, mudguards and Adventure Top Tube, Frame and Triangle Bags. Plus, the new frame has been optimised to fit extra hydration in addition to all your bags.
Suspension fork and dropper post compatible
The Checkpoint SL is now compatible with dropper posts and suspension forks with up to 40 mm of travel so you can send it on chunkier gravel and steeper descents.
Don’t forget your pedals
This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend clipless road pedals for control and efficiency.
| frame | 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |

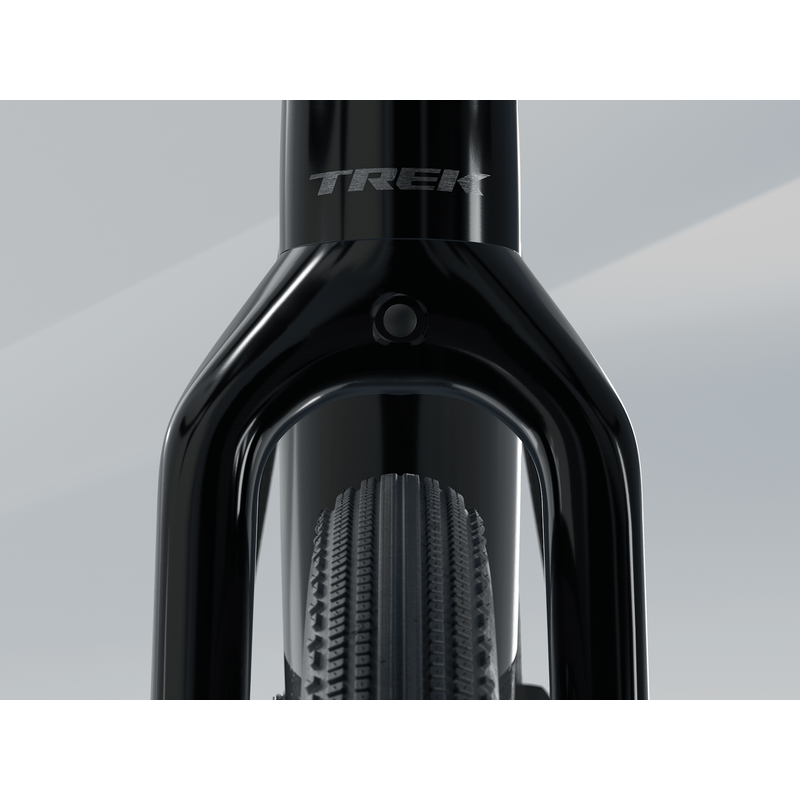

| fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| max compatible fork travel | 40mm (XS - compatible with rigid fork only) |
| weight | ML - 9.50 kg / 20.95 lbs (with TLR sealant, no tubes) |
| weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| battery | SRAM eTap battery pack (with charger) |
| shifter | SRAM Apex AXS, 12-speed |
| rear derailleur | SRAM Apex XPLR eTap AXS, 44T max cog |
| crank | SRAM Apex 1, 40T, DUB Wide, 165 mm length (XS, S) / 170 mm length (M) / 172.5 mm length (ML, L) / 172.5 mm length (XL) |
| bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| cassette | SRAM XPLR PG-1231, 11-44, 12-speed |
| chain | SRAM Apex, 12-speed |
| max. chainring size | 1x -44 2x - 46/30 |
| wheel front | Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
| wheel rear | Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples |
| skewer front | Bontrager Switch chamfered thru axle, removable lever |
| skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| tyre | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| rim strip | Bontrager TLR |
| max tyre size | 50 mm without mudguards, 42 mm with mudguards |
| saddle | Verse Short Comp, steel rails, 155 mm width (XS, S) / 145 mm width (M, ML, L, XL) |
| seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |

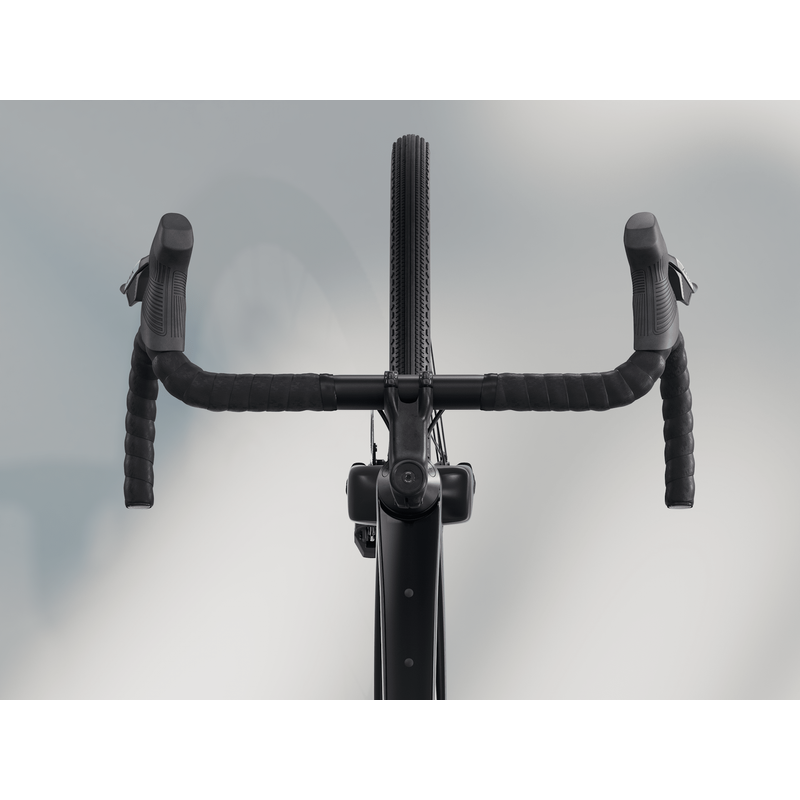

| handlebar | Bontrager Elite Gravel, alloy, 40 cm width (XS) / 42 cm width (M) / 44 cm width (ML, L) / 46 cm width (XL) |
| handlebar tape | Bontrager Supertack Perf tape |
| stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length (XS) / 70 mm length (S) / 80 mm length (M, ML) / 90 mm length (L) / 100 mm length (XL) |
| brake rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| rotor size | Max brake rotor sizes - 180mm front and rear |
| bag | Bontrager BITS Internal Frame Storage Bag |
