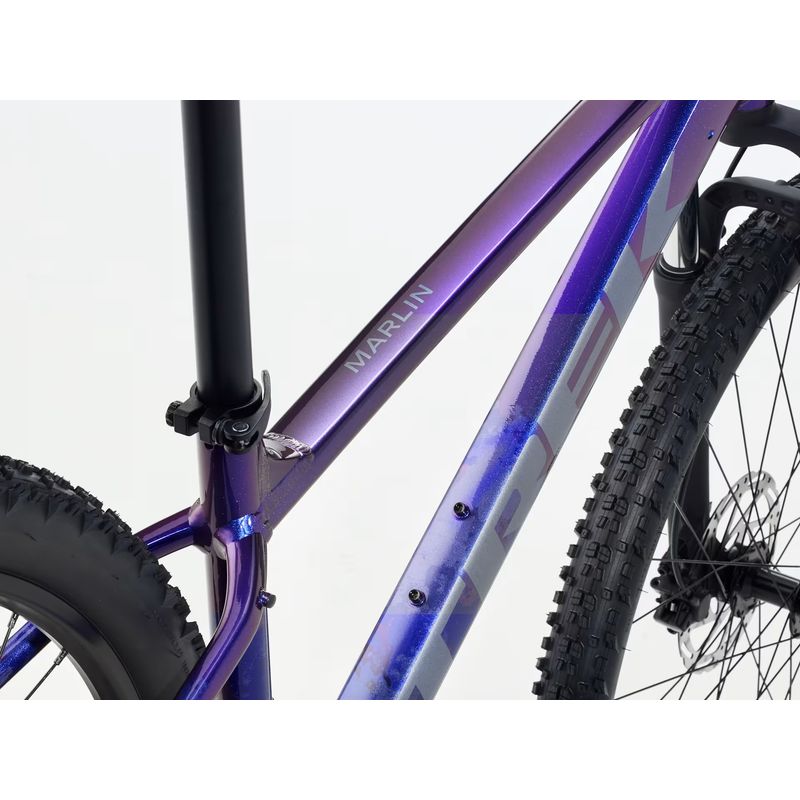

Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height
Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
High tech, high value
Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
| frame | Size - XS - Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew, Size - ML , M , L , S , XL - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kic |
| fork | Size - XS - SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel, Size - S - SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel, Size - ML , M , L , XL - SR Suntour XCE |
| front hub | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| rear hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| rear skewer | 173x5 mm QR |
| rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| tire | Size - XS , S - Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40", Size - ML , M , L , XL - Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40" |
| shifter | Shimano M315, 8-speed |

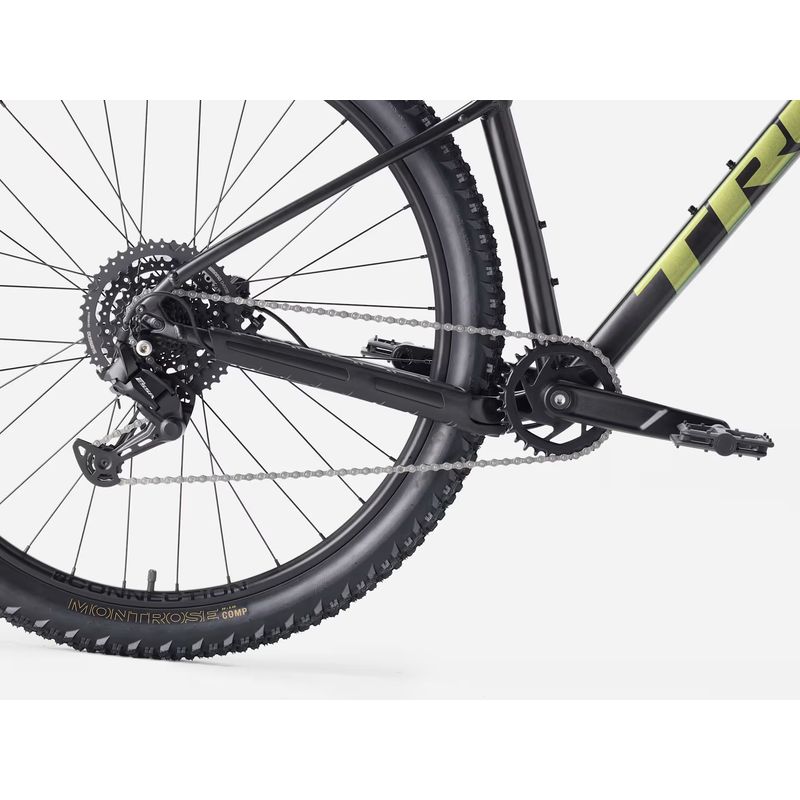

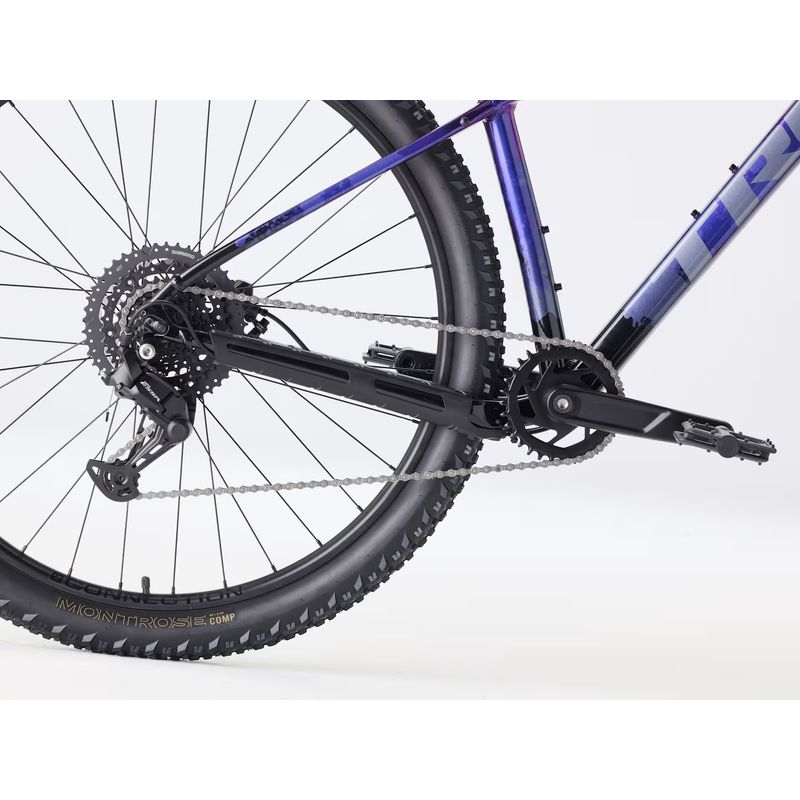

| rear derailleur | Shimano ESSA U2000 |
| crank | Size - XS - ProWheel alloy, 32T narrow-wide steel ring, 160 mm length, Size - ML , M , S - ProWheel alloy, 32T narrow-wide steel ring, 170 mm length, Size - L , XL - ProWheel alloy, 32T narrow-wide steel ring, 175 mm length |
| cassette | Shimano HG300, 11-45, 8-speed |
| chain | KMC Z8.3, 8-speed |
| pedal | Nylon platform |
| saddle | Bontrager Verse Short, stainless steel rails |
| seatpost | Size - M , XS , S - Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length, Size - ML , L , XL - Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
| handlebar | Size - XS - Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width, Size - S - Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width, Size - ML , M , L , XL - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| grips | Trek Line Comp, nylon lock-on |
| stem | Size - XS , S - Bontrager Comp, 31.8 mm, 7-degree, 35 mm length, Size - ML , M , L - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length, Size - XL - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
| headset | Semi-integrated, 1-1/8'' |
| brake | Size - XS , S - Tektro HD-M276 hydraulic disc, Size - ML , M , XS , L , S , XL - Power BH-M286TF hydraulic disc, 160 mm rotor, Size - ML , M , L , XL - Tektro HD-M275 hydraulic disc, Size - ML , M , L , XL - Power BH-M286TF hydraulic disc, 180 mm rotor |
| brake rotor | Size - ML , M , XS , L , S , XL - Tektro, 6-bolt, 160mm, Size - ML , M , L , XL - Tektro, 6-bolt, 180mm |
| weight | M - 14.90 kg / 32.85 lbs |
| weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
