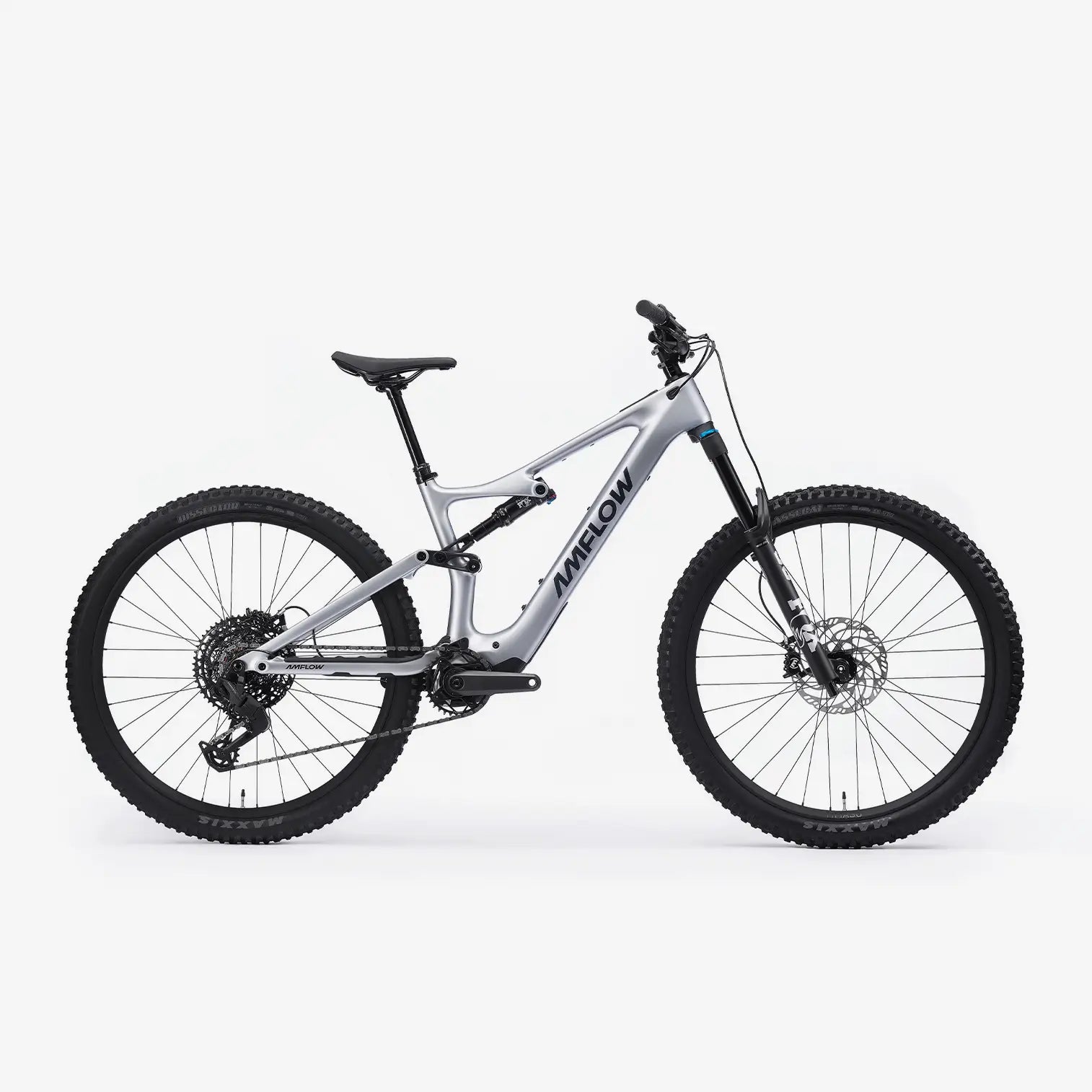

Amflow PL Carbon (800Wh)

Five Modes, Targeted Assistance

In addition to traditional assistance modes of Eco, Trail and Turbo, the Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. [3] Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes.For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

Intelligent Walk Assist, Effortless Control

Amflow PL's Walk Mode features intelligent walk assistance for easy incline traversing, Auto Hold to prevent rollback on slopes, and Hill Start Assist for additional torque to get you started on inclines. It also allows stationary gear shifting for a smooth and intuitive experience.

Intelligent Battery Health, Extended Service Life

Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity.

Built-in Display, Smartphone Connectivity

The brain of the Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide.

Comprehensive Data Recording, Easy Metric Sharing

With the Control Display or the Avinox Ride app, riders can review a rich array of data like speeds, range, cadence, power, torque, gradient, altitude, calories burned, ride times, heart rate, and more. This data can also be easily synced with Strava.

• Max Continuous Torque: 105 N·m
• M1 Drive Unit Weight: 2.52 kg
• Peak Power: 850 W
• Range: 157km
• 0% to 75% in: 1.5 hours

Frame

• Amflow PL Carbon Frame
• Satin Silver
• 150mm rear travel
• Compatible with 27.5" and 29" rear wheels

E-Bike System

• Avinox M1 Drive Unit: 105 N·m
• Avinox Screen: 2-inch OLED Control Display
• Avinox Integrated Battery: 800Wh
• Avinox Wireless Controllers: Right and left sides
• Avinox Fast Charger: 12A/508W

Fork

• 2026 FOX 36 Performance
• 160mm travel, GRIP Damper, 15×110mm, 44mm rake

Rear shock

• 2026 FOX Float Performance
• Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever

Transmission

• Rear Derailleur: SRAM Eagle 70 Transmission Derailleur
• Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
• Shift Levers: SRAM Eagle 70 Transmission Shifter | Single Click
• Cassette: SRAM XS-1270 Eagle Transmission 10-52T
• Chain: SRAM Eagle 70 Transmission Flattop Chain
• Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

• Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

• Amflow HMA-30
• Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
• Spokes: SAPIM E-Light J-bend
• Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
• Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tires

• Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
• Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

• Amflow Enduro Alloy Handlebar
• 35mm rise, 800mm wide
• 5-degree upsweep, 9-degree backsweep

Grips

• Amflow Enduro Grips

Stem

• Amflow Enduro Stem, One-piece CNC
• Length: 35mm
• Clamping diameter: 35mm

Saddle

• Selle Royal SRX Plus

Seatpost

• KS Rage-i
• M: 150mm
• L: 170mm
• XL/XXL: 190mm

Accessories

Quick Start Guide

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Shock Pump

Front and Rear Lights
