Powerful Drive, Smooth Assistance

The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio. The durable, high-strength polymer material inside the M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

Five Modes, Targeted Assistance

In addition to traditional assistance modes of Eco, Trail and Turbo, the Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. [3] Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes.For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque.

Intelligent Walk Assist, Effortless Control

Amflow PL's Walk Mode features intelligent walk assistance for easy incline traversing, Auto Hold to prevent rollback on slopes, and Hill Start Assist for additional torque to get you started on inclines. It also allows stationary gear shifting for a smooth and intuitive experience.

Intelligent Battery Health, Extended Service Life

Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity.

Superior Suspension

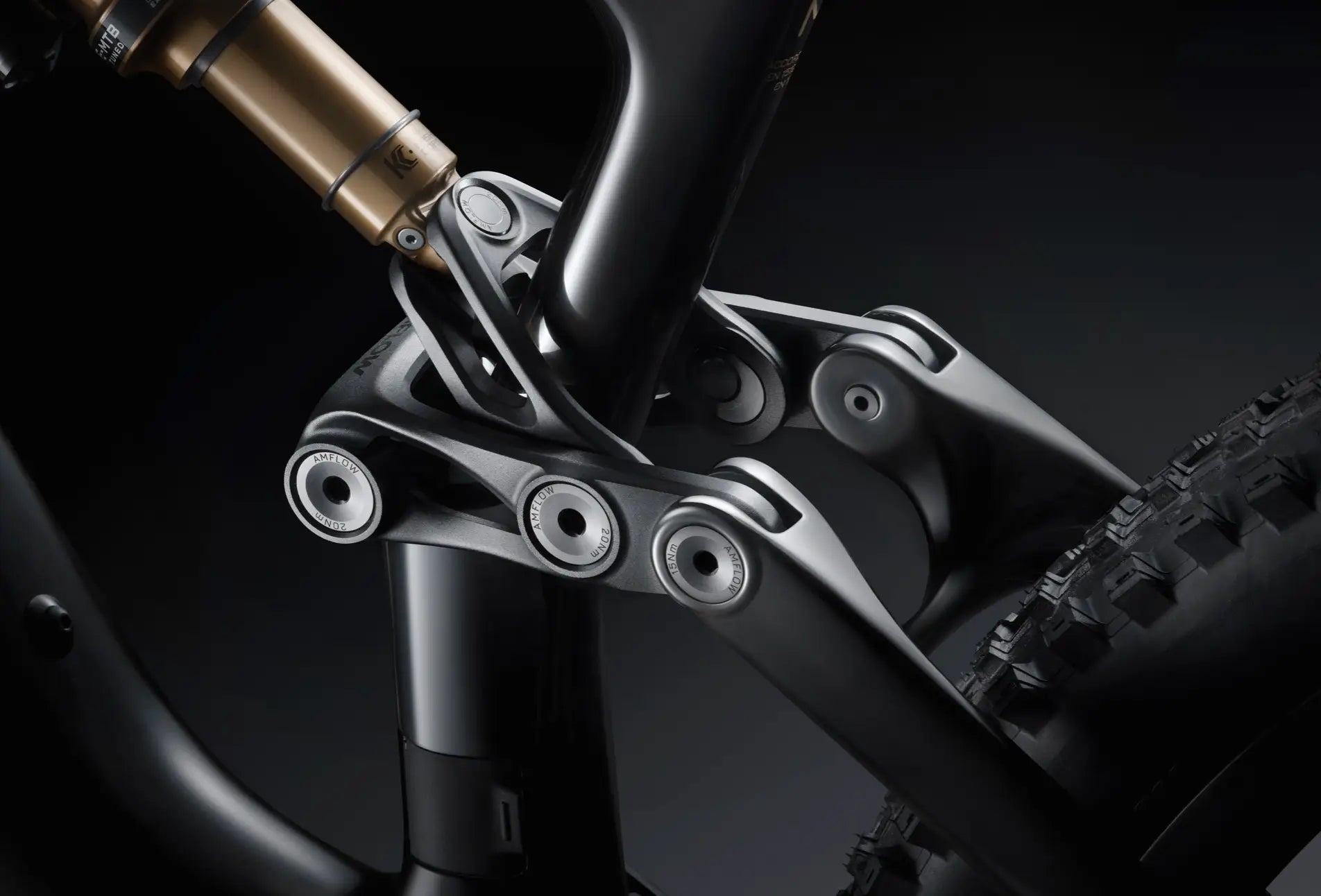

The rear shock, co-tuned with FOX, offers sensitive initial stroke response to effectively filter out minor vibrations. It also provides powerful end-stroke support to prevent bottom-outs during continuous high-speed impacts or steep descents, so you can fully enjoy every off-road adventure.

Built-in Display, Smartphone Connectivity

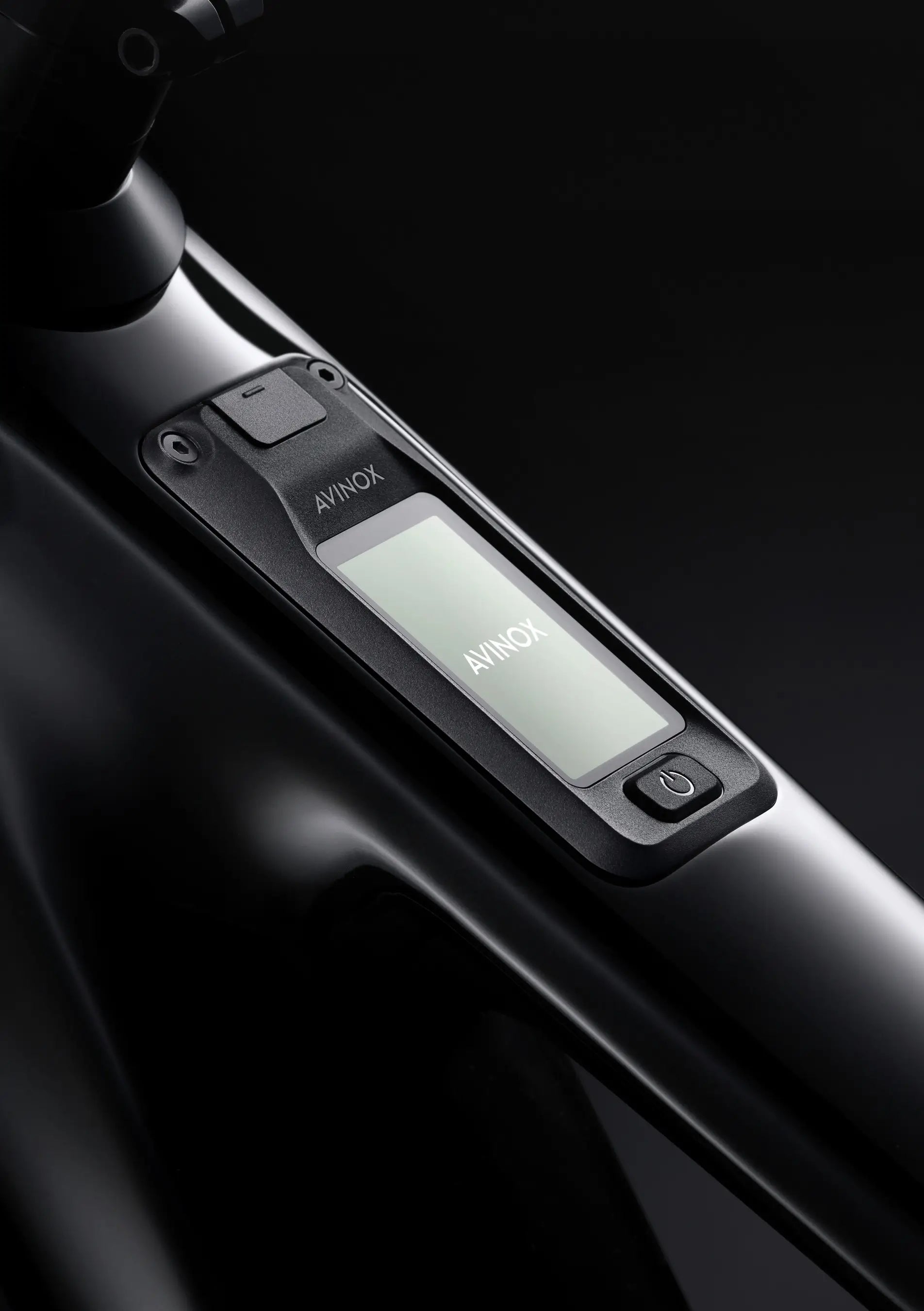

The brain of the Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide.

Comprehensive Data Recording, Easy Metric Sharing

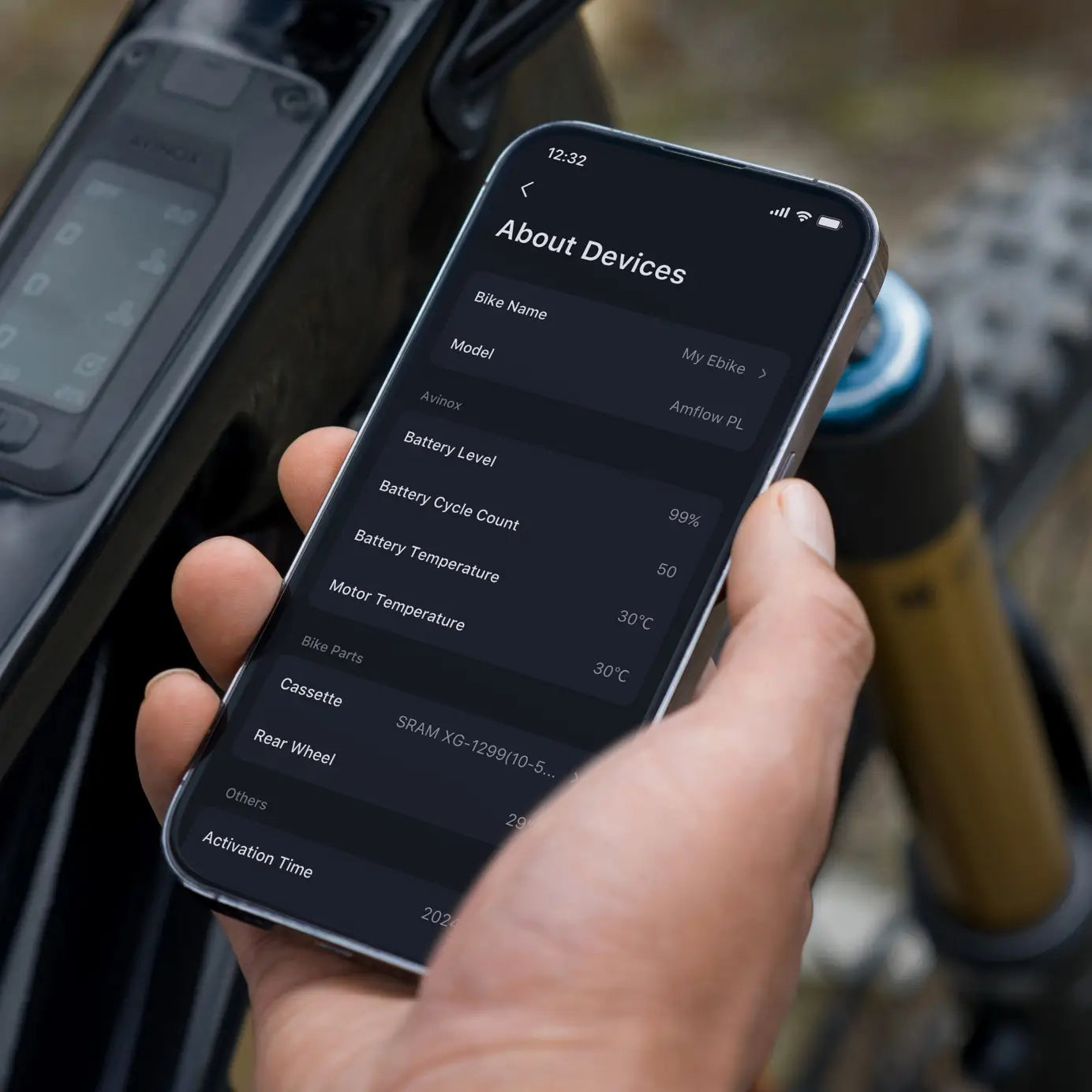

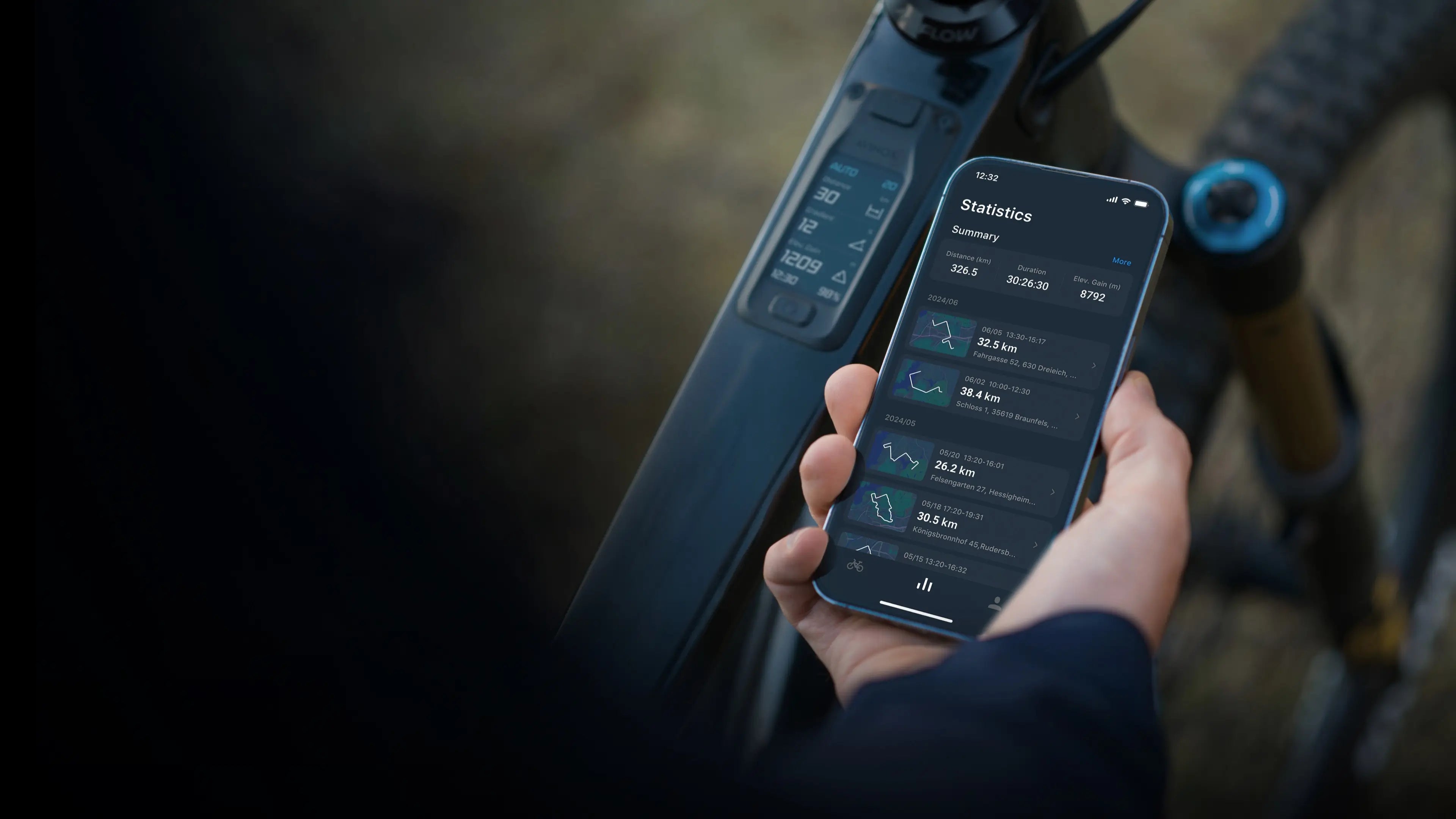

With the Control Display or the Avinox Ride app, riders can review a rich array of data like speeds, range, cadence, power, torque, gradient, altitude, calories burned, ride times, heart rate, and more. This data can also be easily synced with Strava.

• Max Continuous Torque: 105 N·m
• M1 Drive Unit Weight: 2.52 kg
• Assist Modes × 5
• Range: 157km
• 0% to 75% in 1.5 hours

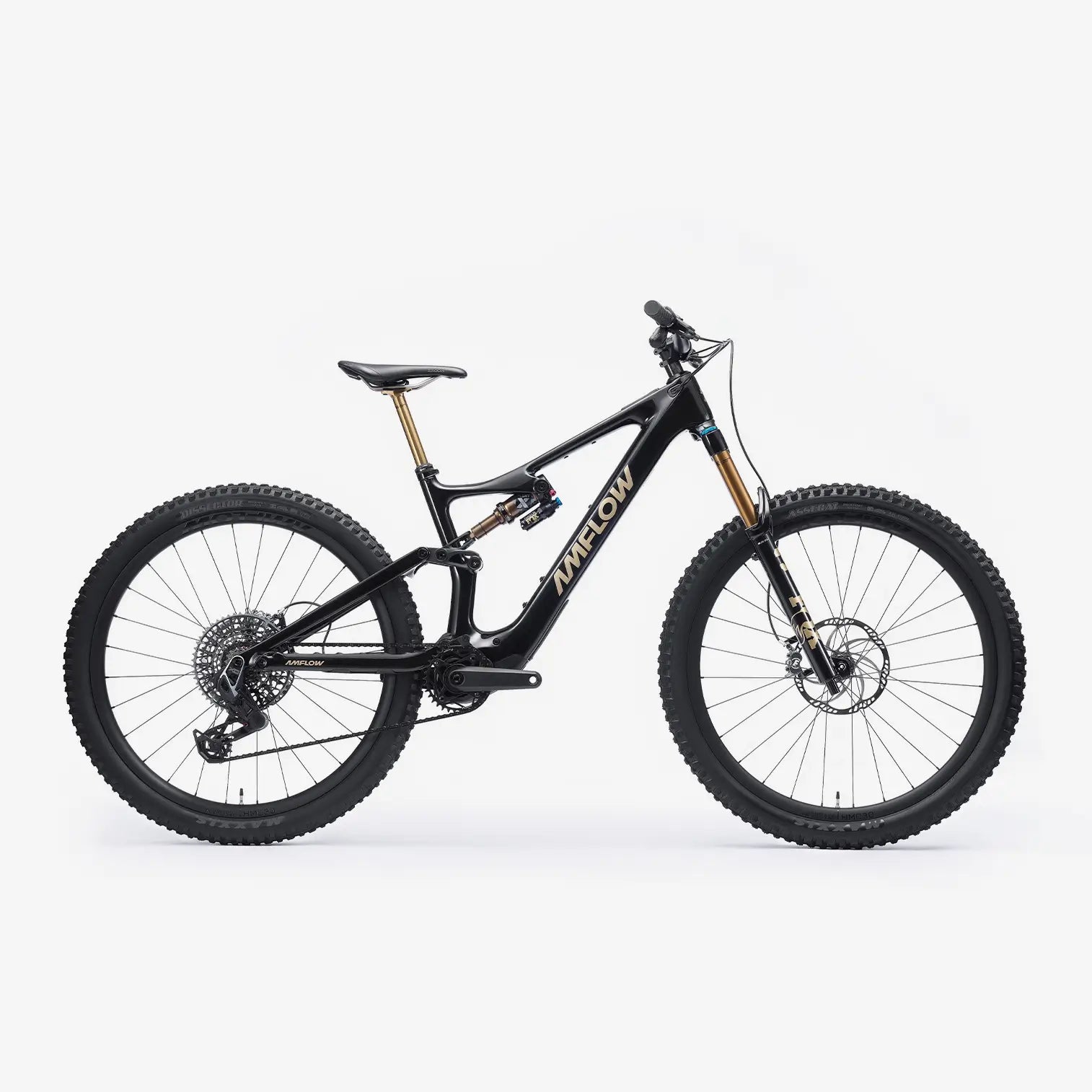

Frame

• Amflow PL Carbon Frame
• Cosmic Black
• 150mm rear travel
• Compatible with 27.5" and 29" rear wheels

E-Bike System

• Avinox M1 Drive Unit: 105 N·m
• Avinox Screen: 2-inch OLED Control Display
• Avinox Integrated Battery: 800Wh
• Avinox Wireless Controllers: Right and left sides

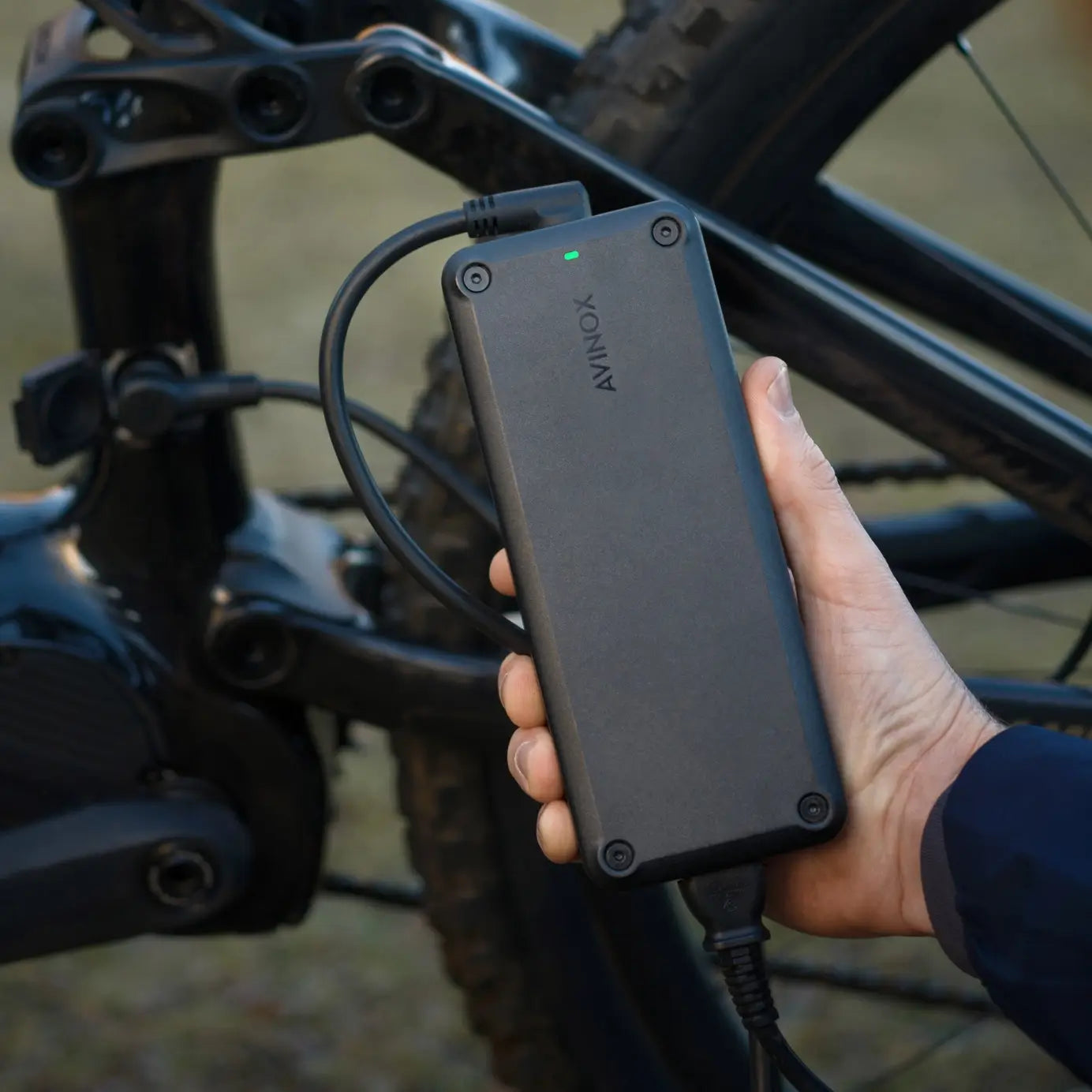

• Avinox Fast Charger: 12A/508W

Fork

• 2026 FOX 36 Factory
• 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

Rear shock

• 2026 FOX FLOAT X Factory
• Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment

Transmission

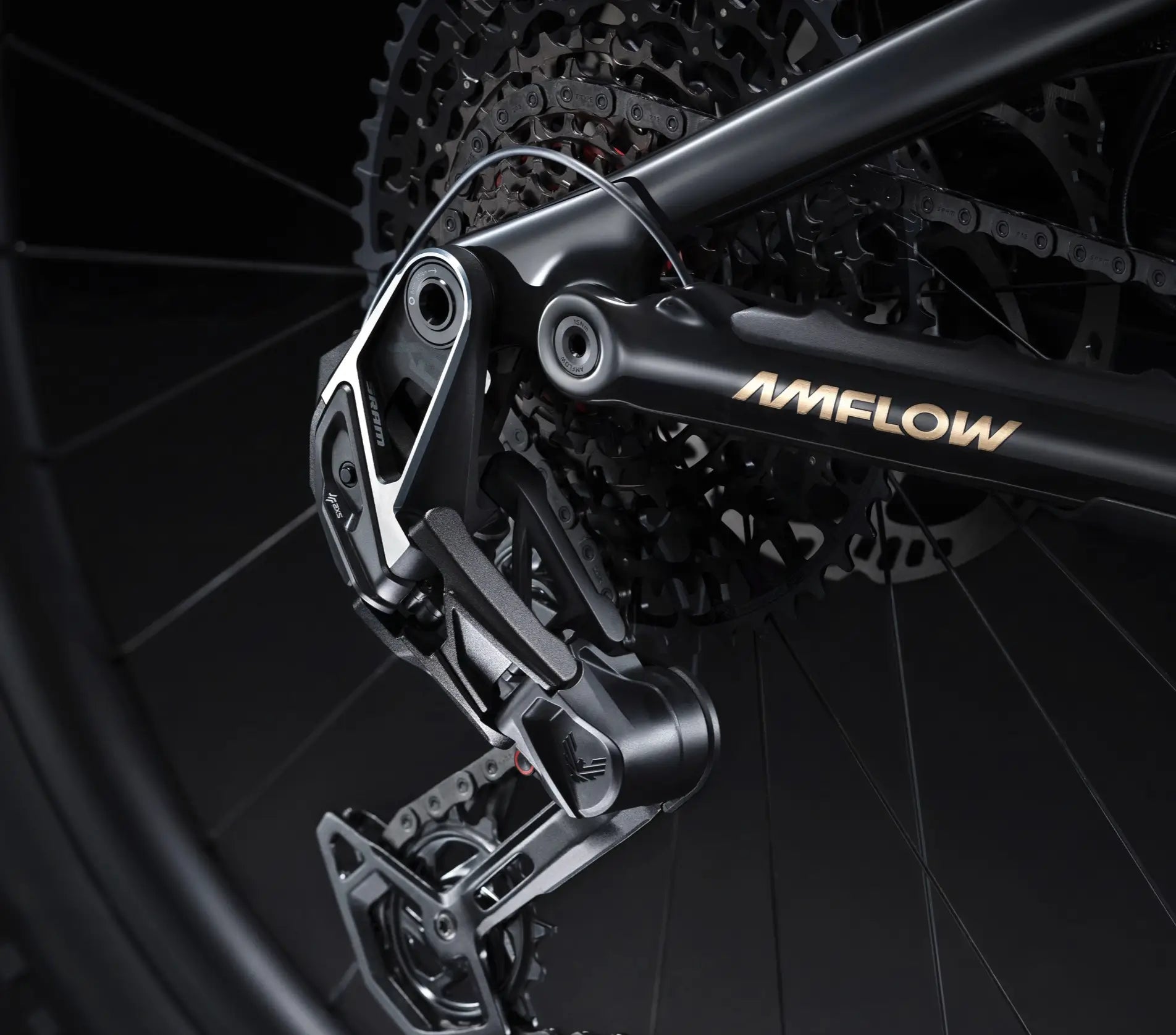

• Rear Derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable
• Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
• Shift Levers: SRAM AXS Pod Controller
• Cassette: SRAM XS-1295 Eagle Transmission 10-52T
• Chain: SRAM X0 Eagle Transmission Flattop Chain
• Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

• Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)

Wheels

• Amflow HMC-30
• Rims: Carbon, 29'', 30mm internal width, 28H, tubeless ready
• Spokes: SAPIM E-Light Straightpull
• Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
• Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T

Tires

• Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
• Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

• Amflow Enduro Carbon Handlebar
• 25mm rise, 800mm wide
• 5-degree upsweep, 9-degree backsweep

Grips

• Amflow Enduro Grips

Stem

• Amflow Enduro Stem, One-piece CNC
• Length: 35mm
• Clamping diameter: 35mm

Saddle

• Ergon SM PRO M/L

Seatpost

• Fox Transfer Factory, Travel adjustable in 5mm
• M: 125-150mm
• L/XL: 155-180mm
• XXL: 185-210mm

Accessories

• Quick Start Guide
• Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
• Shock Pump
• Front and Rear Lights
