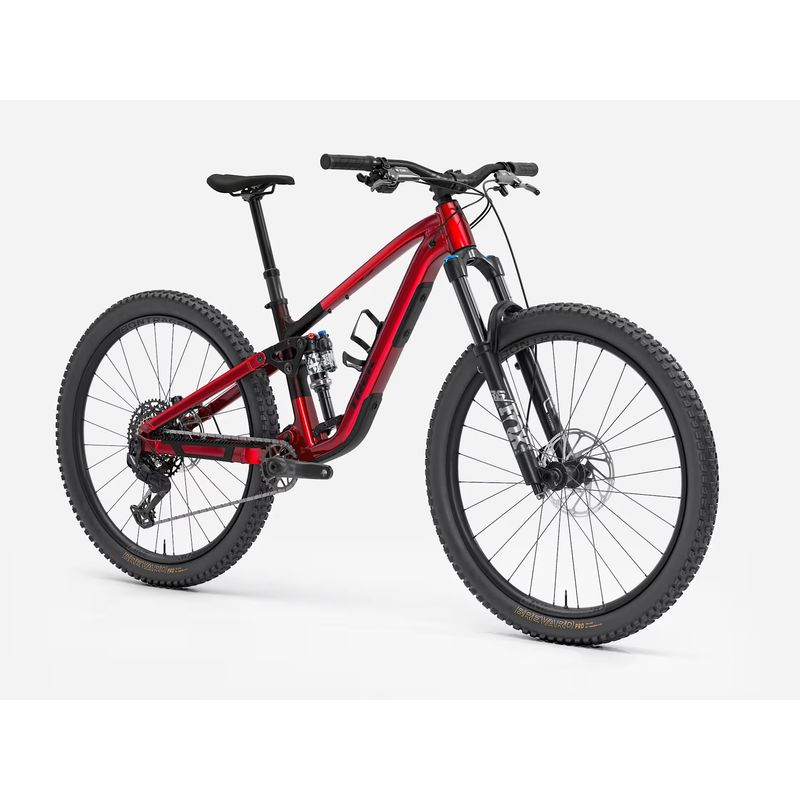

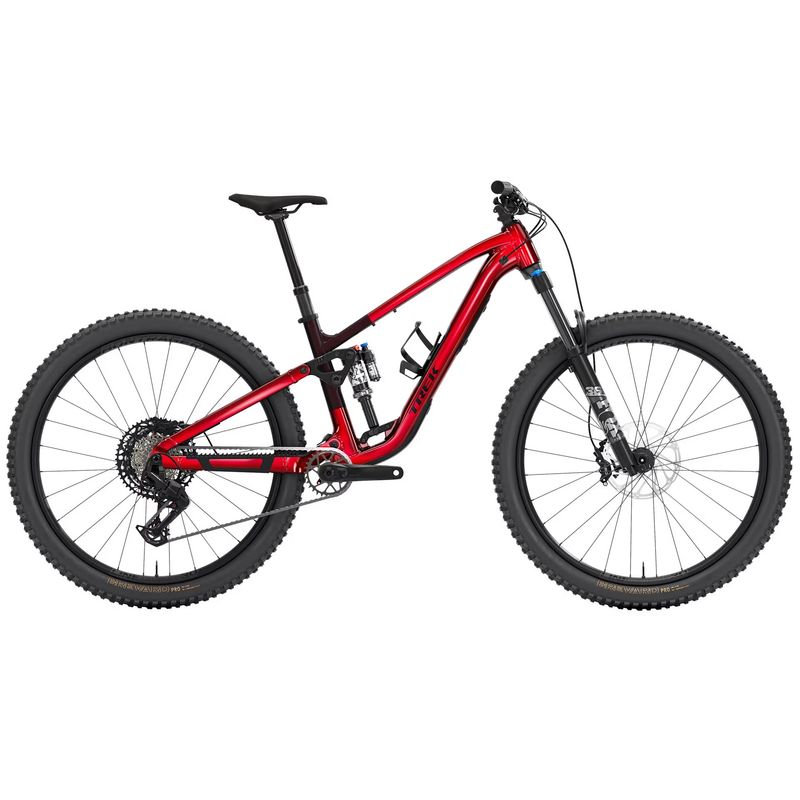

Trek Fuel EX 8 Gen 7 MTB

Jack of all trails

Flow, tech or steeps – the Fuel is up to get down. This trail ripper features ultra-adjustable geometry that lets you choose your own adventure, whether you’re after a stoic trail tamer, rowdy MX ride or enduro-ready beast. Three build options and endless tweaks mean you can get a ride that’s fine-tuned for your style and stomping grounds. Wherever the trail leads you, the Fuel is ready to send.

The Fuel EX 8 is a confident and versatile trail bike built to get after it. It comes ready to rip with an Alpha NEXT Platinum frame, Fox performance suspension package with 145 mm/150 mm travel (rear, front), alloy Bontrager Line wheels and a SRAM Eagle 70 transmission that keeps shifts smooth, even under load. It's topped off with 4-piston SRAM DB 8 hydraulic disc brakes to keep you stopping on a penny.

Adapt, rip, repeat

Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX.

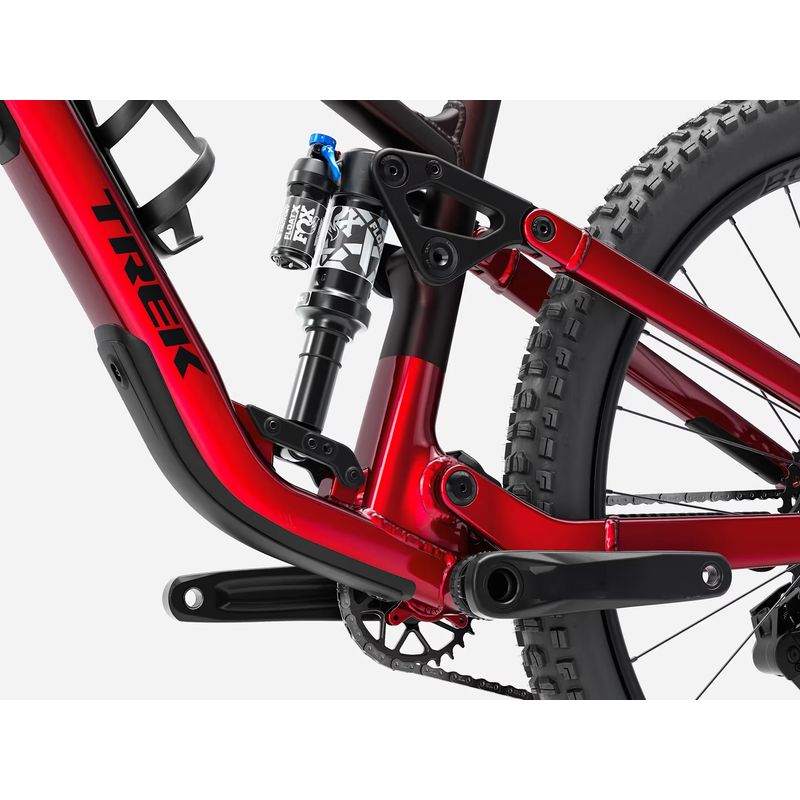

Adjustable leverage rate

Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

Zero stack integrated headset

With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours.

Storage and accessory mounts

Stash ride essentials with in-frame storage on all Fuel models – both carbon and alloy. Plus, top tube accessory mounts let you load up even more.

Fresh frame design

The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Transition to transmission

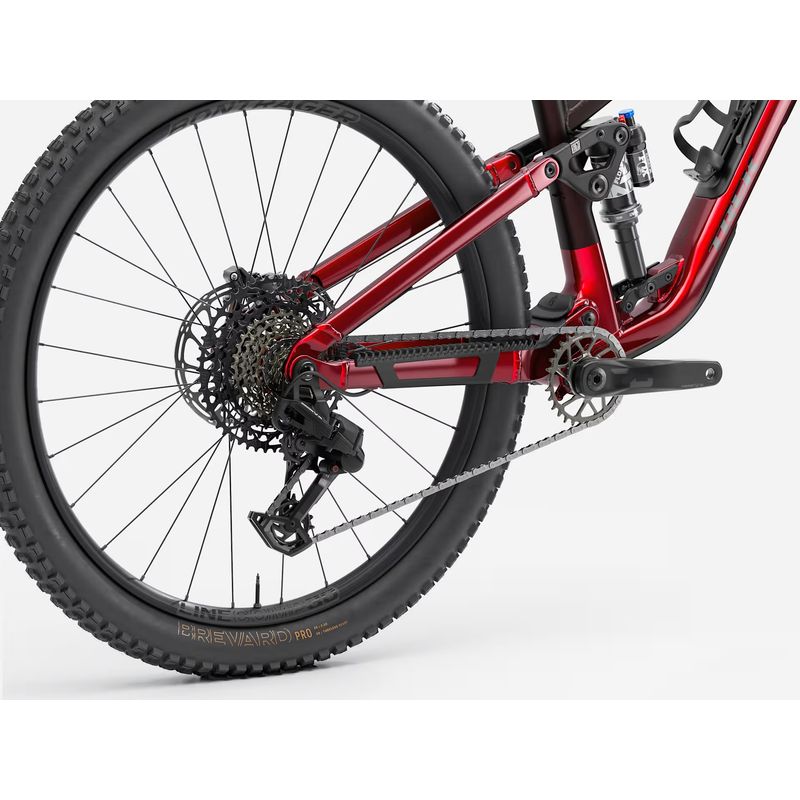

The SRAM Eagle T-Type transmission mounts directly to the frame, skipping that pesky derailleur hanger of yesteryear. This makes for a more robust system that's not only cleaner-looking, it's also more precise under load and easier to set up.



tire	Size - S, XL, L, M - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50", Size - S - Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
max tyre size	Frame - 29x2.50", Fork - See manufacturer
max chainring size	Max - 34T (oval – 32T) Min - 30T (oval – 32T)
seatpost	Size - S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length, Size - M - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length, Size - XL, L - Bontrager Line Dropper, 200 mm travel,
rotor size	Max brake rotor sizes – Frame - 203 mm, min 180 mm, Fork - see fork manufacturer
weight	M - 16.89 kg / 37.24 lbs (with TLR sealant, no tubes)
weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
mainframe	Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP,
fork	Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel
shock	Fox Performance Float X, 2-position damper, 205 mm x 60 mm
front hub	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
rear skewer	Bontrager Switch thru-axle, removable lever
rim	Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
tire part	Bontrager TLR sealant, 180 ml/6 oz
rim strip	Bontrager TLR
shifter	SRAM Eagle 70, 12-speed
rear derailleur	SRAM Eagle 70, T-Type
crank	SRAM Eagle 70, DUB, 30T steel, T-Type, 55 mm chainline, 170 mm length
bottom bracket	SRAM DUB MTB Wide, 73 m, BSA threaded
cassette	SRAM Eagle XS-1270, T-Type,10-52, 12-speed
chain	SRAM Eagle 70, T-Type, 12-speed
saddle	Bontrager Verse P3, chromoly rails
handlebar	Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
grips	Trek Line Comp, nylon lock-on
stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
headset	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
brake	SRAM DB 8 4-piston hydraulic disc
brake rotor	SRAM CenterLine 2.0, 6-bolt, 180 mm, Size - S, XL, L, M - SRAM CenterLine 2.0, 6-bolt, 200 mm
