Make the Top Fuel yours
Opt for light parts and a 120 mm fork for a featherweight Top Fuel, or a 140 mm fork and longer-stroke 130 mm rear shock for extra versatility. Room for a longer dropper and MX wheels lets you customise the Top Fuel into an ultimate playful trail whip.

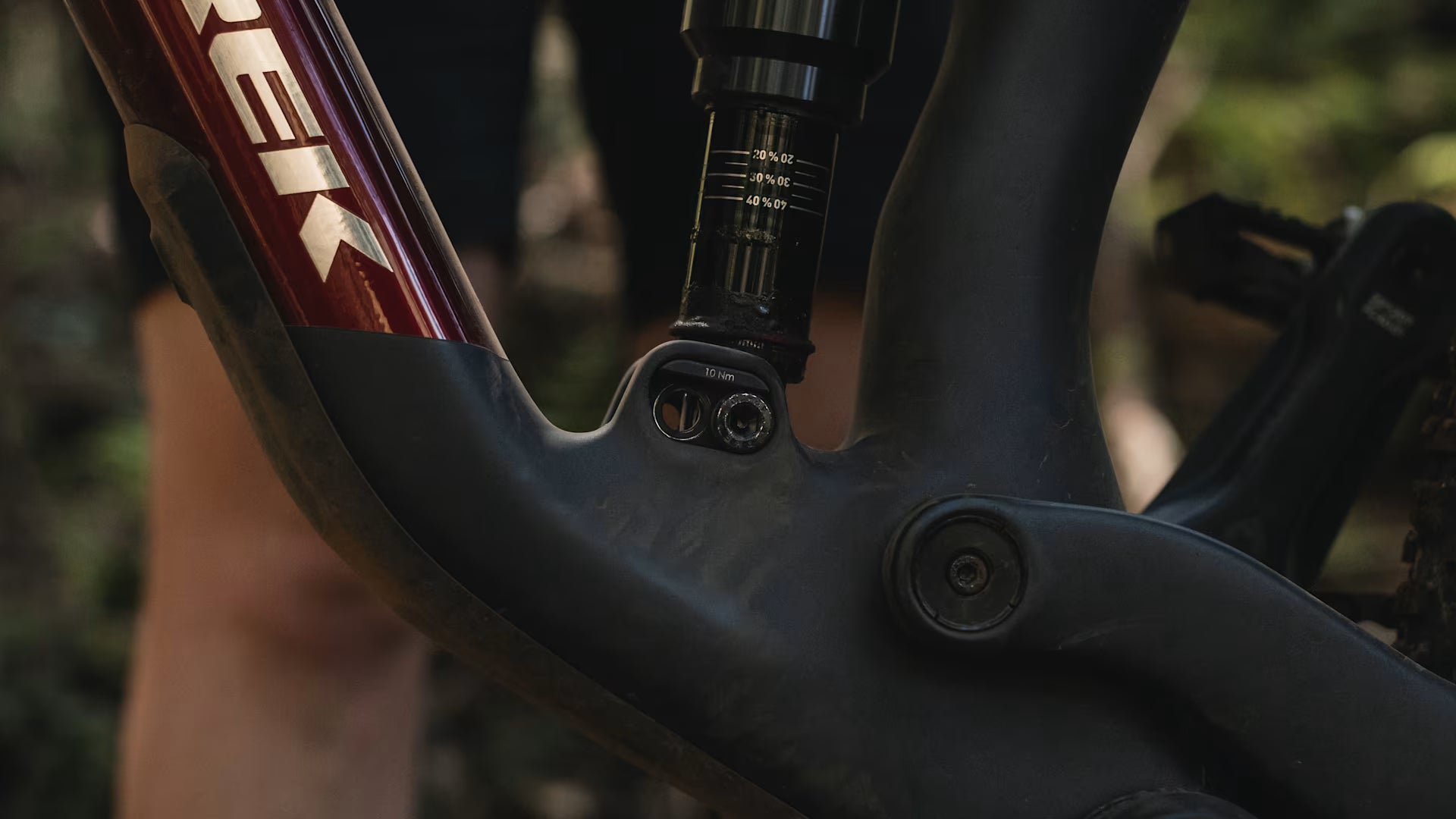

4-way Mino Link
Easily adjust the suspension and geometry four different ways for where and how you ride. At the flip of a coin, you can ride with more or less progressive suspension and tweak your geometry for a slacker head tube and lower BB, or steeper head tube and higher BB.

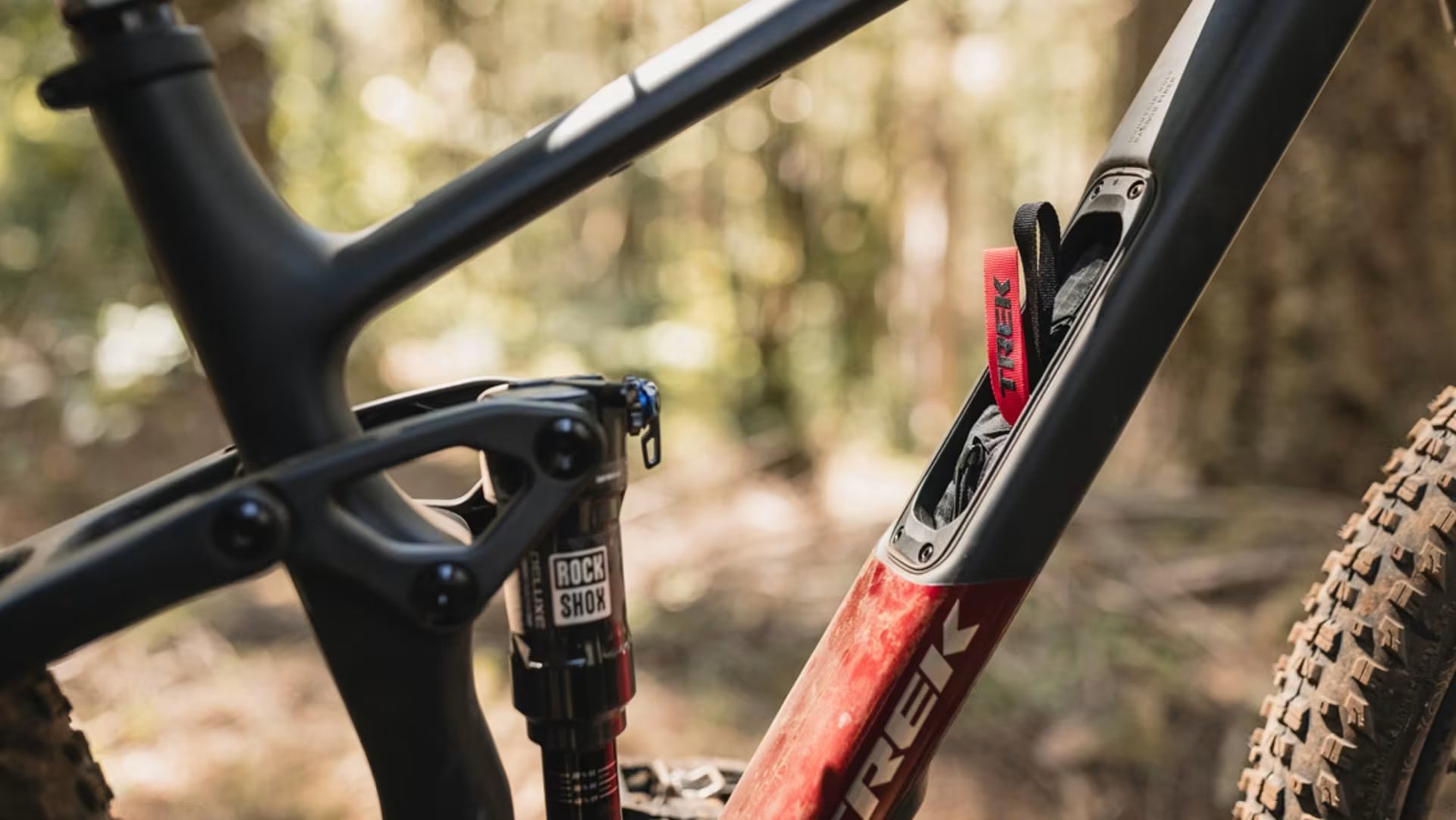

New internal storage with new BITS bags
New internal frame storage bags make it easy to ditch the pack and still carry your ride essentials.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
| stem | Bontrager Elite 35 Stem |
| handlebar | Bontrager Handlebar Line, 35x780mm, 27.5mm Rise |
| saddle | Bontrager Verse P3, chromoly rails |
| type | Dropper |
| frame | Alpha Platinum Aluminum, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120mm travel |
| bb standard | BSA, 68mm, Threaded |
| tire clearance | 2.5" |
| spring type | Air |
| fork | Fox Rhythm 34, 27.5, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 130mm travel |
| shock | Fox Performance Float, 185mm x 50mm, 54mm upper trunnion mount, 30mm x 8mm lower eyelet, Fox part number 972-61-267 - XL, L, S , M, ML: Fox Performance Float, 185mm x 50mm; XL, L, S , M, ML: Fox Performance Float DPS, 2-position damper, 185mm x 50mm |
| bottom bracket | Bottom Bracket Shimano Bottom Bracket Deore BB-MT501 |
| seatpost | Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length - S : Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length; XL, L, M, ML: Bontrager Line Dropper, 170mm travel, MaxFlow, internal routin |
| grips | Bontrager Grips XR Trail Comp Black - XL, L, S , M, ML: Bontrager XR Trail Comp, nylon lock-on; XL, L, S , M, ML: Trek Line Comp, nylon lock-on |
| rear derailleur | Shimano Deore XT Derailleur Rear. Item Number: RD-M8100, 12-Speed, Direct Attachment, SGS Cage, Max 51T, Shadow Plus design |
| crank | Shimano DEORE Crankset. Item Number: FC-M6120-1, 1x, 12-Speed, 30T, 170mm, HollowTech 2, |
| shifters | Shimano Deore XT Shifter. Item Number: SL-M8100-R, 12-Speed, Rapidfire Plus, Inner Cable Length: 2050mm, Without Optical Gear Display. |
| cassette | Shimano SLX Cassette. Item Number: CS-M7100, 12-Speed, 10-12-14-16-18-21-24-28-33-39-45-51T |
| chain | Shimano SLX Chain. Item Number: M7100, 12-Speed, With Quick Link |
| brakes | Shimano Deore Brake Set |
| tires | Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40'', tan sidewall - S : Bontrager Gunnison Pro XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''; XL, L, M, ML: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 6 |
