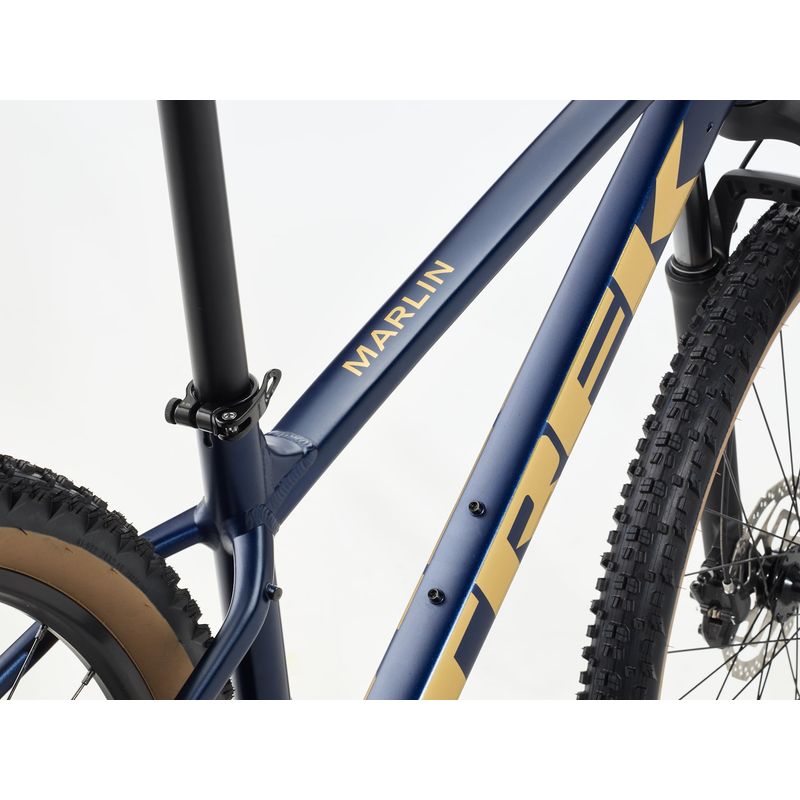

Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
High tech, high value

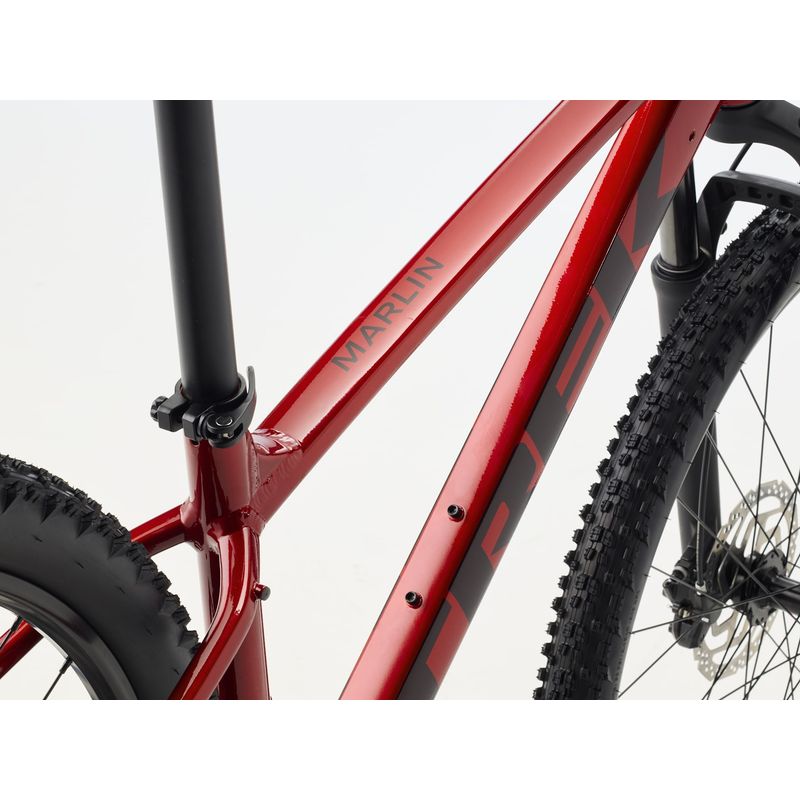

Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
| frame | Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
| fork | SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" (XS, S) / 29" wheel (M, ML, L, XL, XXL), 100 mm QR, 100 mm travel |
| hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| skewer rear | Trek Thru-Skew |
| rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| spokes | 14 g stainless steel, black |
| tyre | Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40" (XS, S) / 29x2.40" (M, ML, L, XL, XXL) |

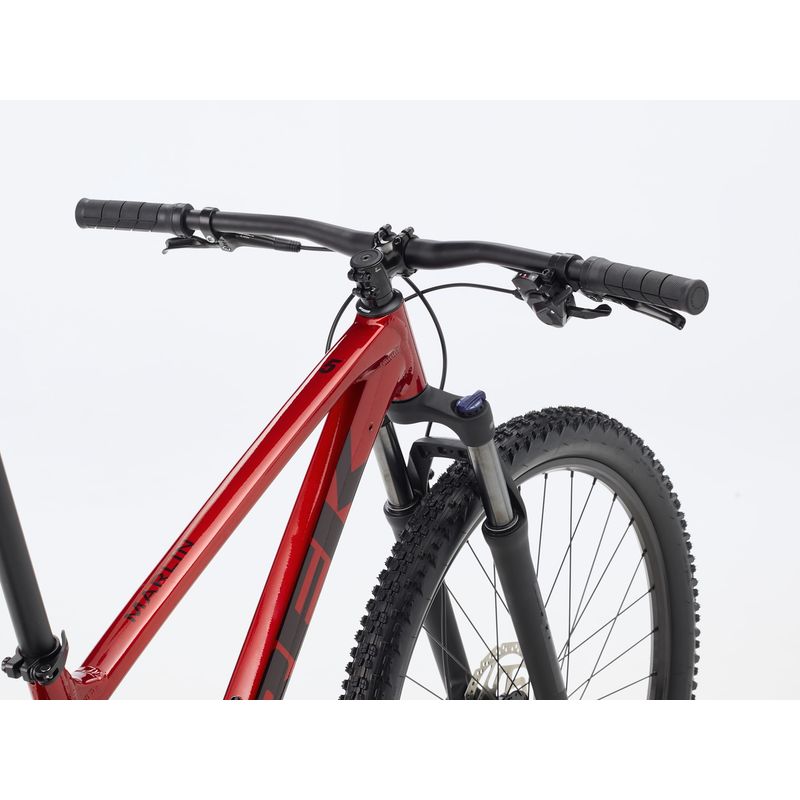

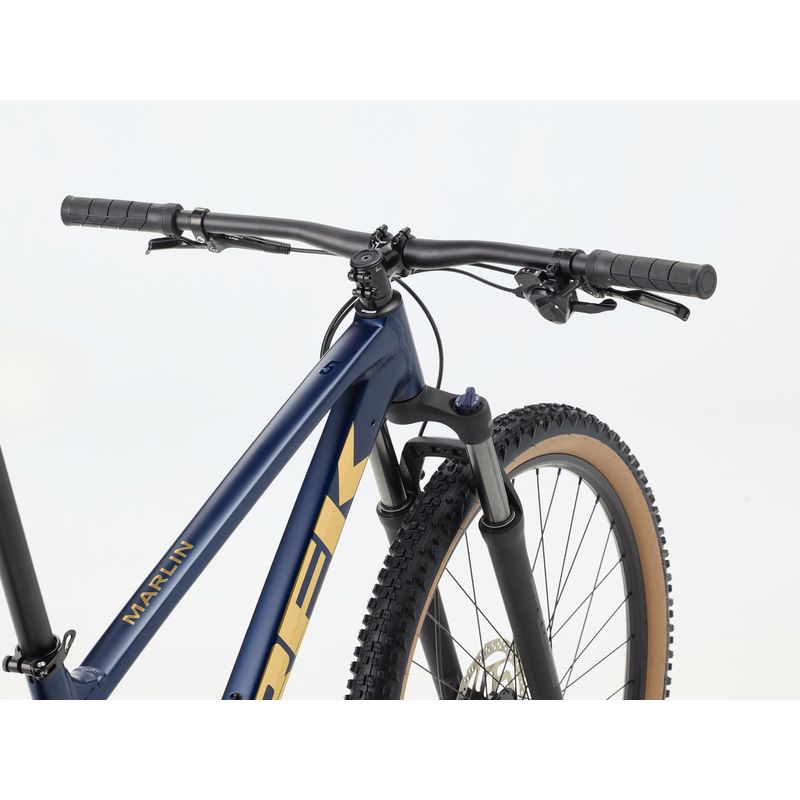

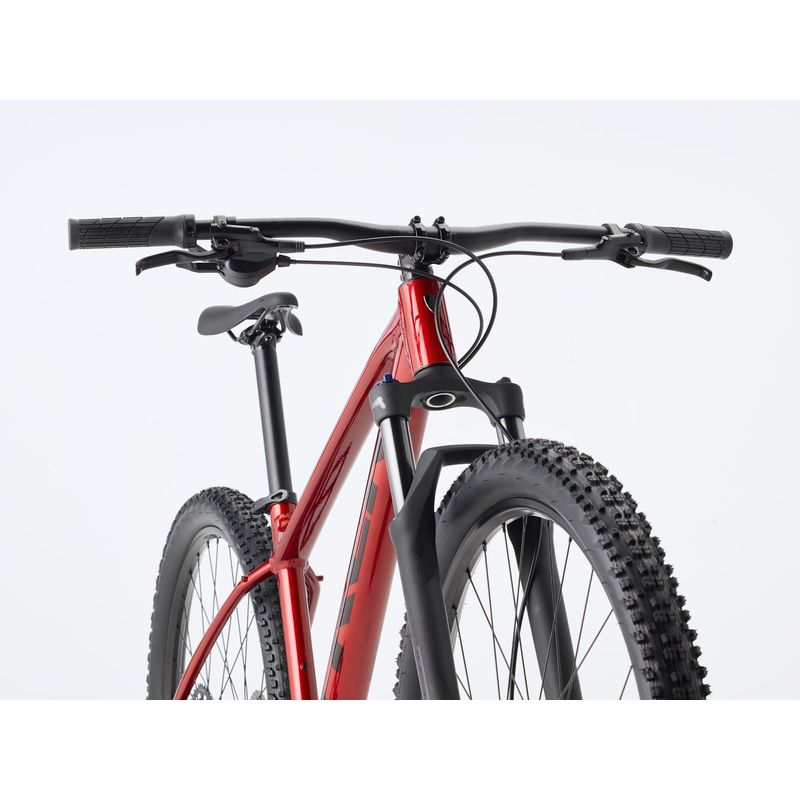

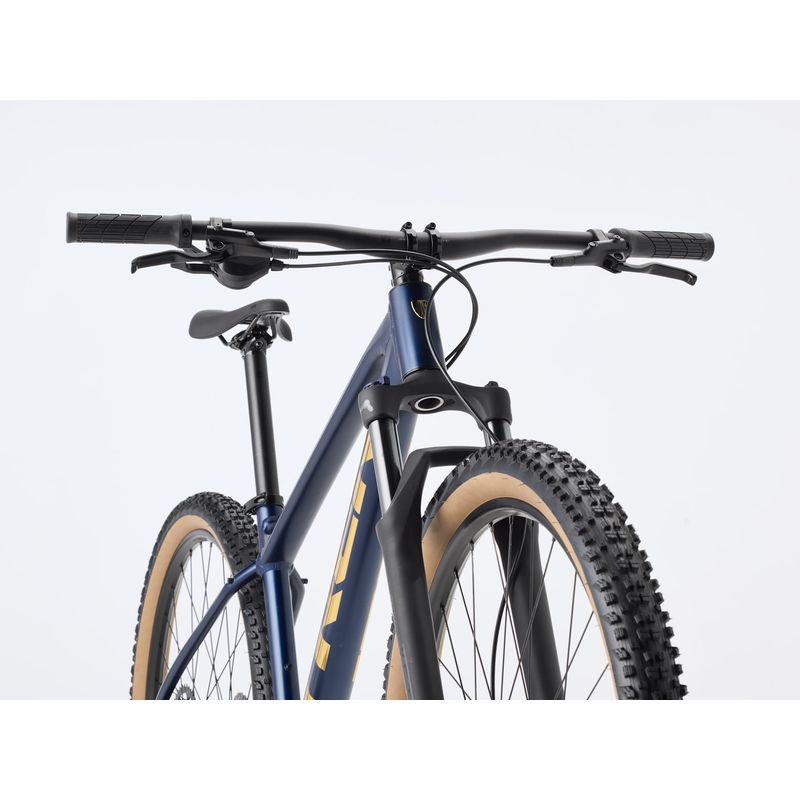

| handlebar | Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width (XS) / 720 mm width (S) / 750 mm width (M , ML , L , XL , XXL) |

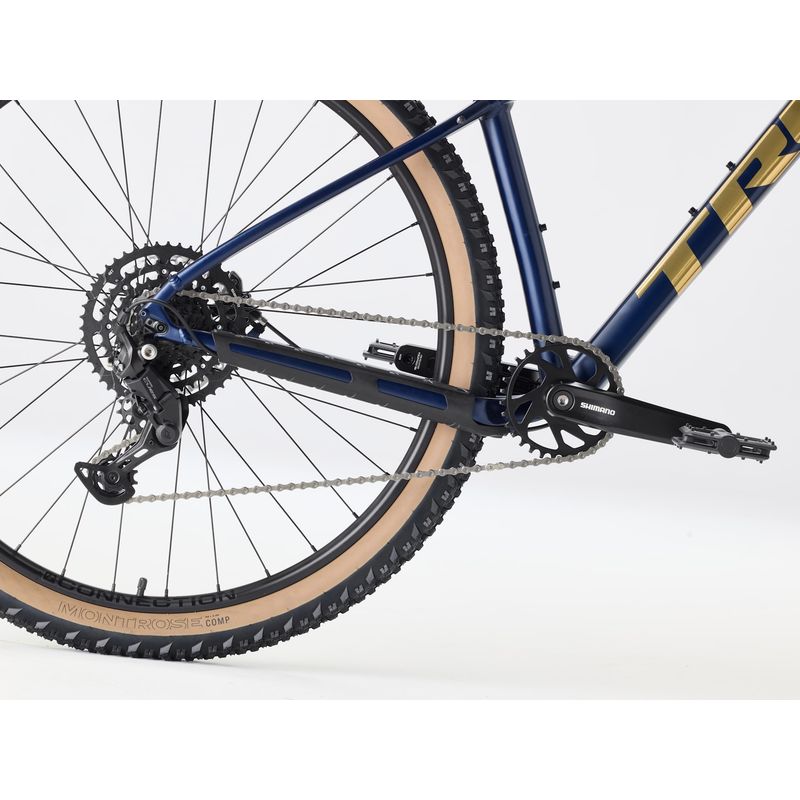

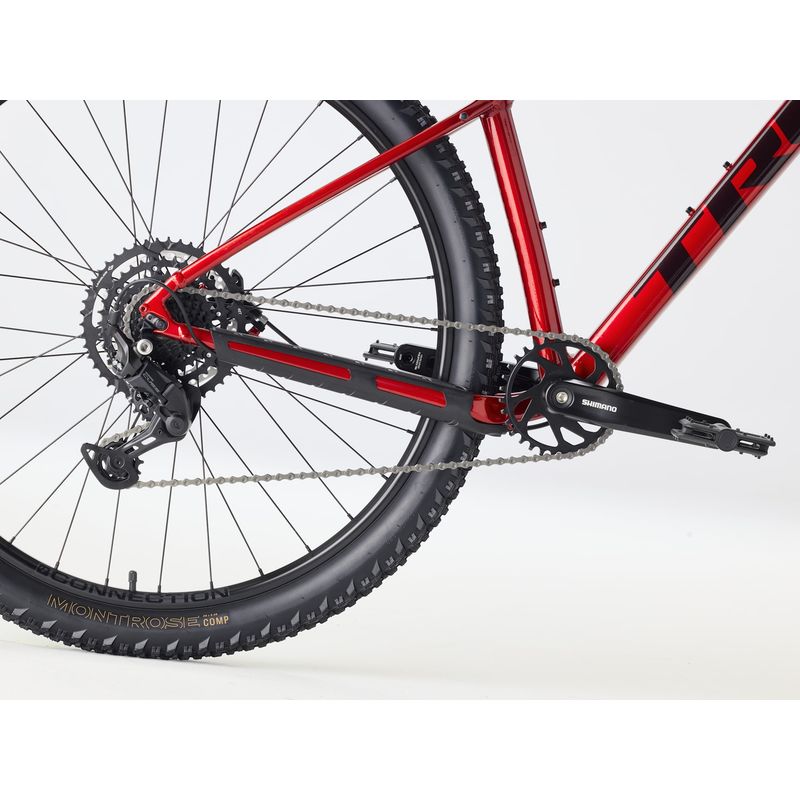

| rear derailleur | Shimano CUES U4000 |
| crank | Shimano CUES U4001, 32T, 52mm chain line, 170 mm length (XS , S , M , ML) / 175mm length (L , XL , XXL) |
| bottom bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| cassette | Shimano LINKGLIDE LG300, 11-46, 9-speed |
| chain | Shimano LG500 |
| pedal | VP-536 nylon platform |
| saddle | Bontrager Verse Short, stainless steel rails |
| seatpost | Bontrager alloy, 31.6 mm, 12 mm offset |
| grips | Trek Line Comp, nylon lock-on |
| stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length (XS , S) / 50 mm length (M , ML , L) / 60 mm length (XL) / 70 mm length (XXL) |
| head set | Semi-integrated, 1-1/8" |
| brake | Shimano MT200 hydraulic disc |
| brake rotor | Shimano RT26, 6-bolt, 160 mm / 180 mm |
| brake set | Shimano MT200 hydraulic disc |
| weight | M - 15.10 kg / 33.29 lbs |
