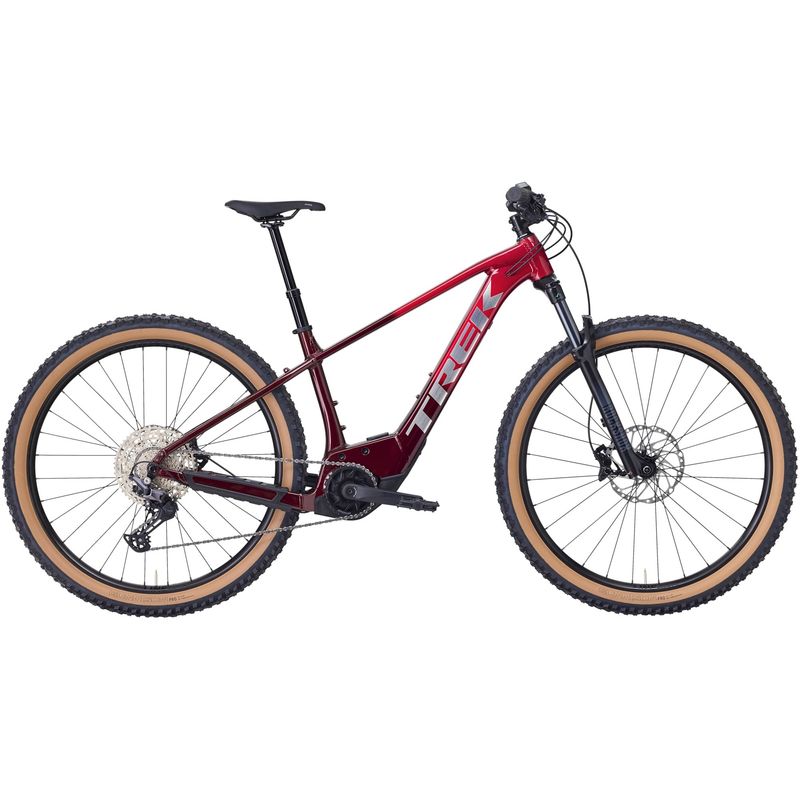

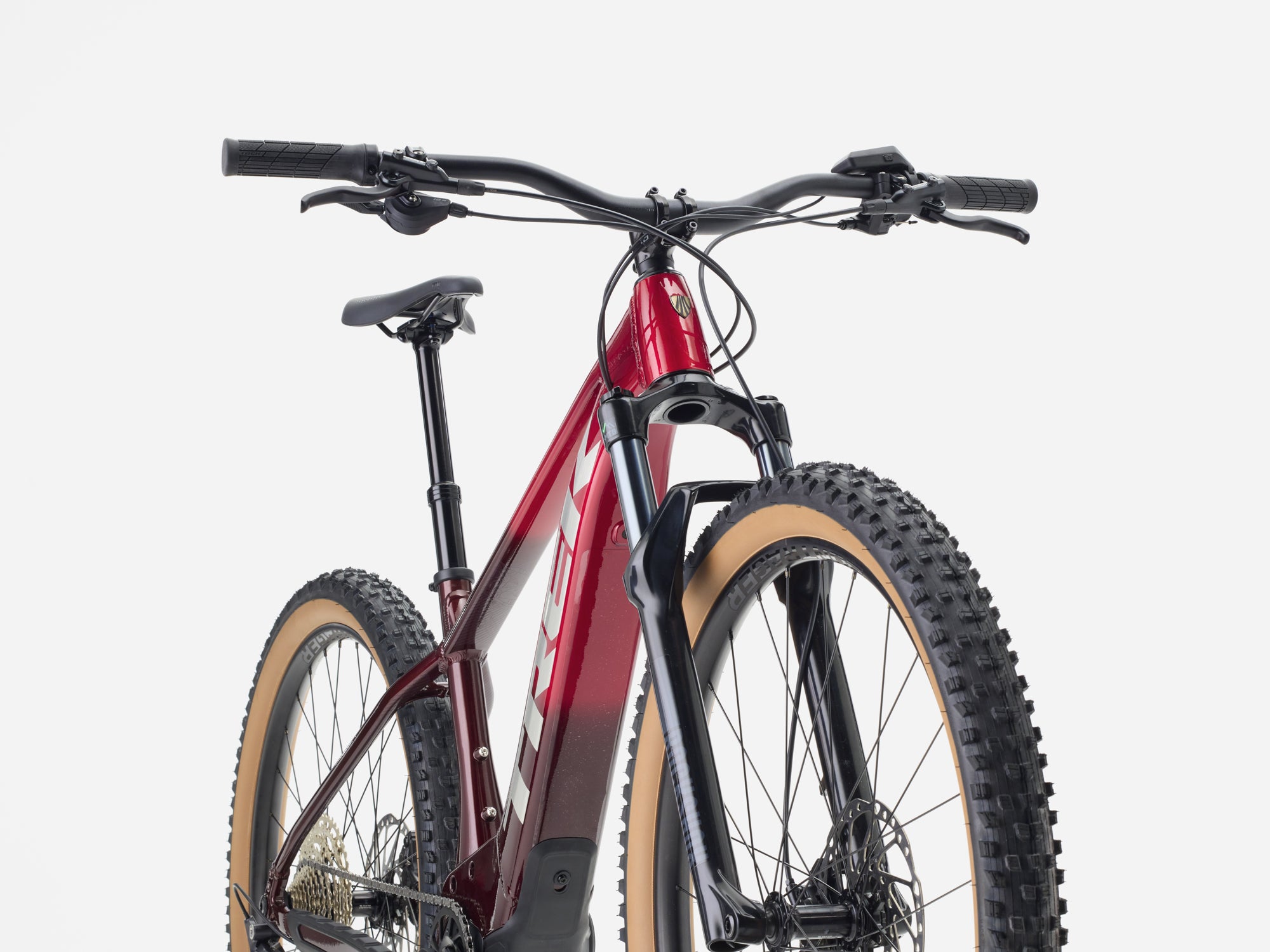

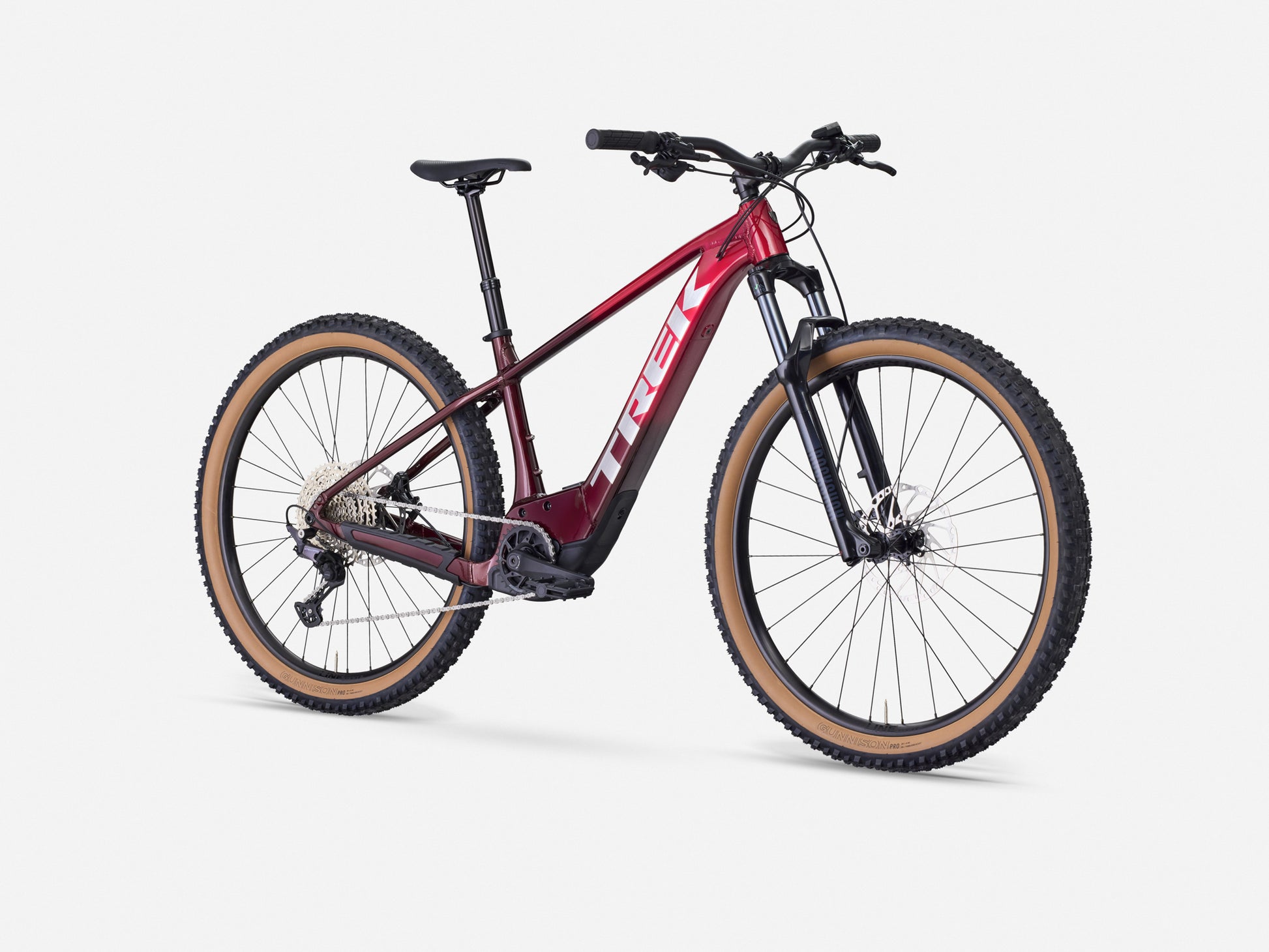

Trek Marlin+ 8 29" Hardtail E-Bike

Soar up trails, through town and everywhere in between with the ultimate do-anything e-MTB. The Marlin+ is an electric hardtail that gives you all the versatility you crave and adds in a simple boost for flattening climbs and cruising with ease. You get features that matter most, like a Bosch drive unit and a confident and capable bike frame – without the hefty price tag. Are you ready to get hooked?

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

Smooth, quiet support

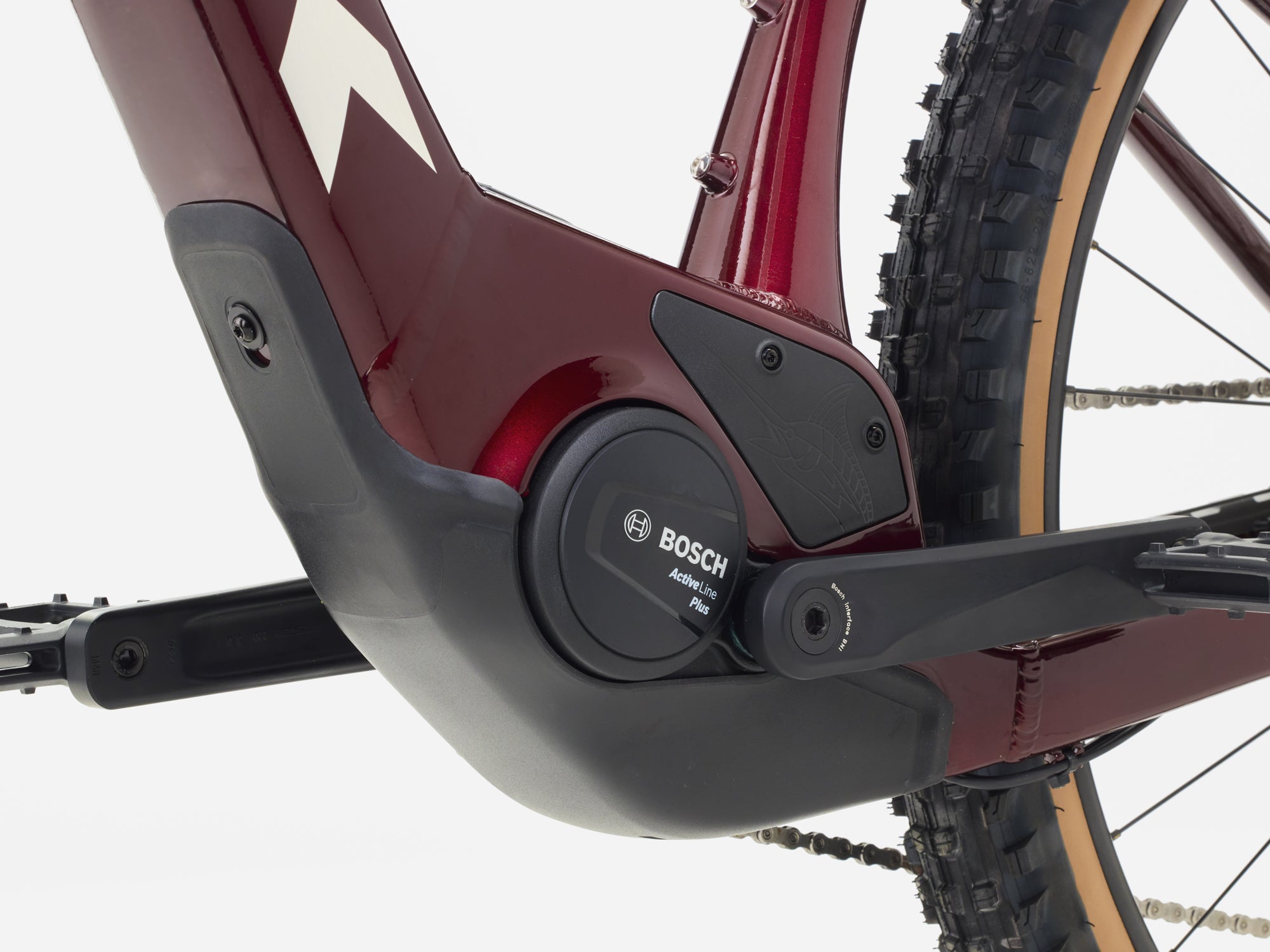

Bosch Active Line Plus mid-power motor doles out a smooth 50 Nm of torque. Its controlled acceleration, low pedal resistance and super-quiet operation give you a natural-feeling, unobtrusive ride.

Clean, simple controls

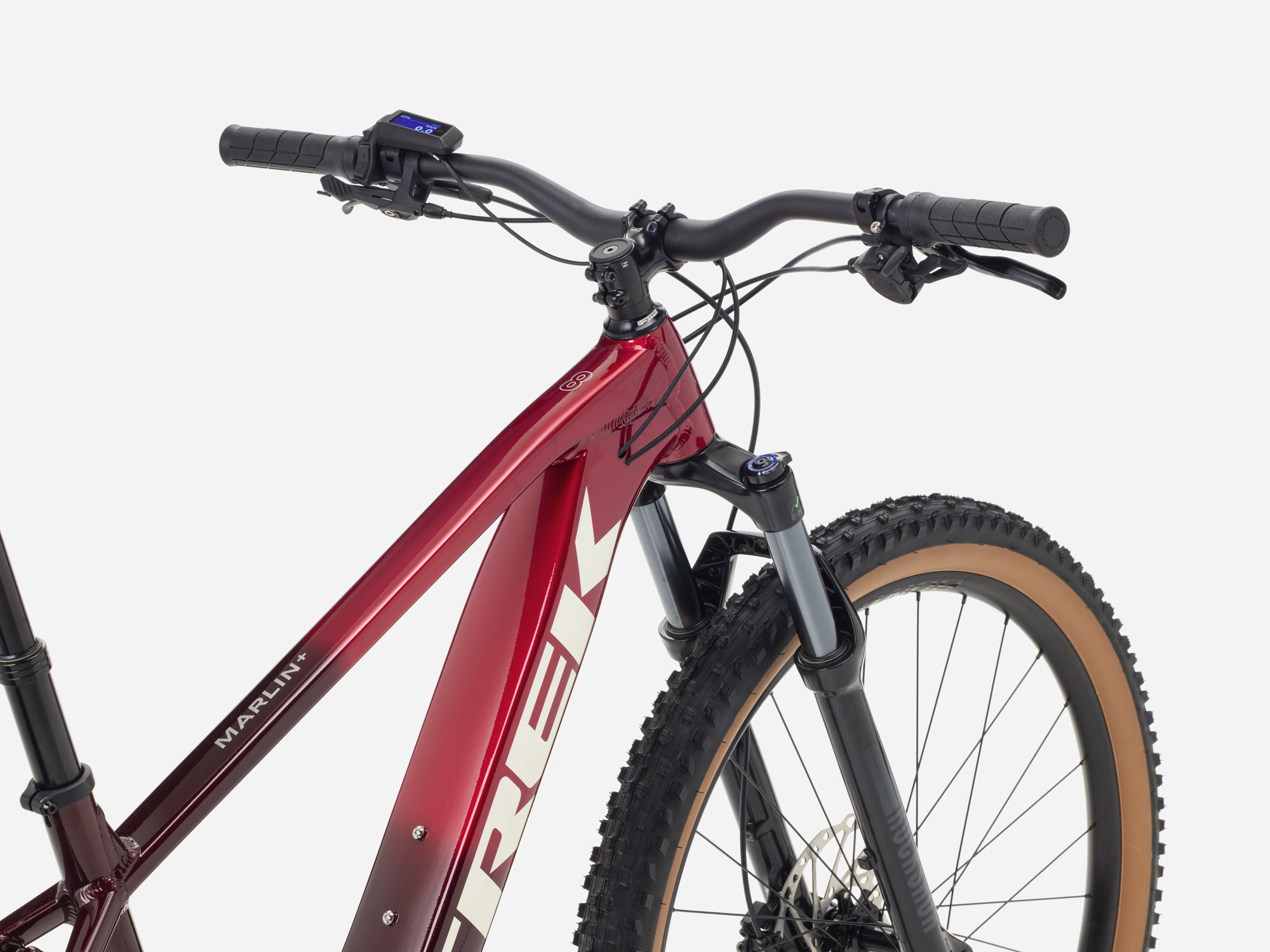

The 2-in-1 remote and display provides all the information and control you'll need in a compact, full-colour handlebar controller with intuitive controls.

System safety taken seriously

Trek sets its e-bike safety standards high with UL certified e-systems, sophisticated battery management fail-safe systems and battery cells from tier 1 suppliers.

PowerMore

Want to ride farther? Add PowerMore to your Marlin+. This booster battery extends your range, so you get more supported ride time.

frame	Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
fork	RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset (XS, S) / 42 mm offset M, L, XL), Boost110, 15 mm Maxle Stealth, 100 mm travel (XS) / 120 mm travel (S, M, L, XL)
hub front	Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
hub rear	Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
skewer rear	Bontrager Switch thru-axle, removable lever
rim	Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
tyre	Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60" (XS, S) / 29x2.60" (M, L, XL)
tyre part	Bontrager TLR sealant, 180 ml/6 oz
rim strip	Bontrager TLR
max tyre size	Frame - 29x2.6" (XS - 27.6x2.6") Fork - See manufacturer
battery	Bosch CompactTube 400Wh
charger	Bosch standard 2A, 230V, smart system
computer	Bosch Purion 200
e-bike classification	Class 3
shifter	Shimano Deore M6100, 12-speed
rear derailleur	Shimano Deore M6100, long cage
crank	FSA CK-220, 165 mm length
chainring	FSA, 32T, steel w/guard

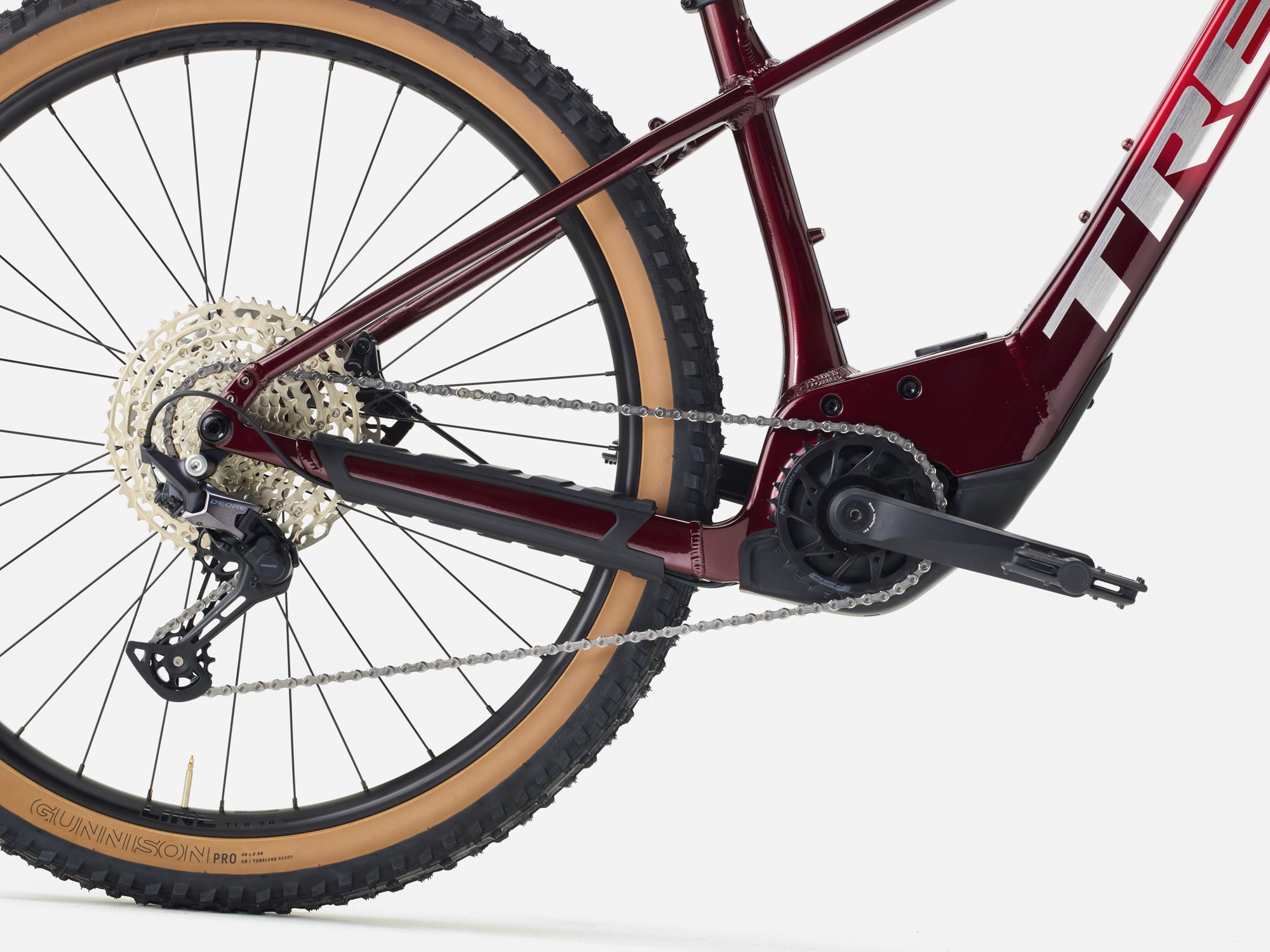

cassette	Shimano Deore M6100, 10-51, 12-speed
chain	Shimano Deore M6100, 12-speed
pedal	VP-536 nylon platform
max. chainring size	1x - 36T, min 32T
saddle	Bontrager Verse P3, chromoly rails
seatpost	TranzX JD-YSI34, 100 mm travel (XS, S) / 150 mm travel (M, L) / 170 mm travel (XL), internal routing, 31.6 mm
handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width (XS, S) / 780 mm width (M, L, XL)
grips	Trek Line Comp, nylon lock-on
stem	Bontrager Comp, 31.8 mm, 7-degree, 35 mm length (XS, S) / 50 mm length (M, L) / 60 mm length (XL)
head set	Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
brake	Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
brake rotor	Shimano RT64, CentreLock, 203 mm
rotor size	Max brake rotor sizes – Frame - 203 mm, min 180 mm, Fork - see fork manufacturer
weight	M - 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)
weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
